스위블 EZ 2"
Description

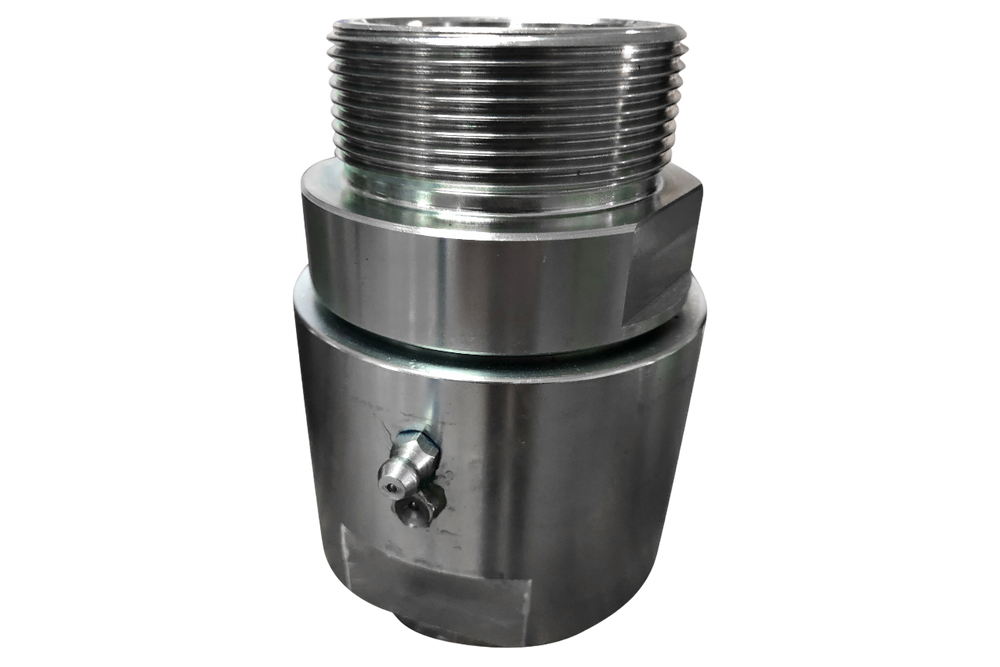

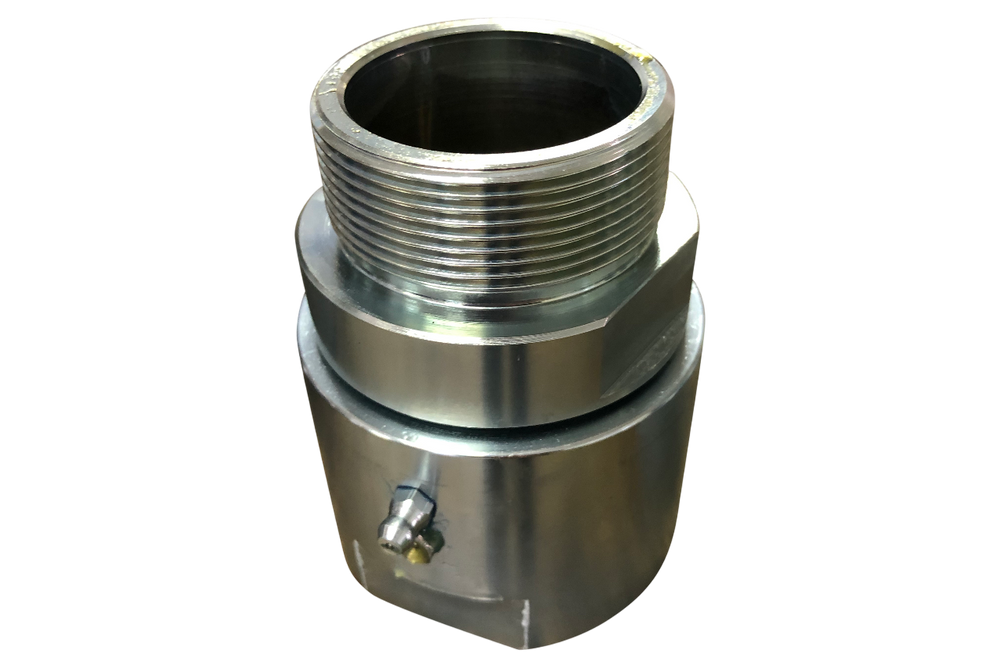

Swivel EZ 2" – Heavy-Duty Steel Swivel Coupling
2" Swivel Coupling with Double-Row Ball Bearing – Up to 20 Bar
The Swivel EZ 2" is a robust, pressure-resistant swivel coupling specifically designed for demanding pumping and hose applications. Manufactured from high-quality steel, this custom-made swivel combines durability, stability, and reliable rotation in a compact design.
The swivel features both a 2" male thread and a 2" female thread, allowing it to be integrated into a wide range of hose and pump systems. During operation, the coupling allows free rotation between connected components, helping to prevent hose twisting and reduce mechanical stress on the hose assembly.
A major advantage of the Swivel EZ 2" is its double-row ball bearing. Compared with conventional single-row designs, this provides increased stability and excellent resistance against tilting forces.
With a maximum operating pressure of 20 bar, the swivel is suitable for demanding applications including refractory material pumping, concrete pumping, agriculture, and water management.
Key Features
- Heavy-duty 2" swivel coupling
- Custom-made from high-quality steel
- 2" male thread
- 2" female thread
- Maximum operating pressure: 20 bar
- Double-row ball bearing
- High resistance to tilting forces
- Allows free rotation of connected components
- Helps prevent hose twisting
- Suitable for demanding industrial pumping applications
- Additional sizes available
Benefits
Double-Row Ball Bearing for Increased Stability
The integrated double-row ball bearing provides excellent stability and resistance against tilting forces. This makes the swivel significantly more stable than conventional designs using a single-row bearing.
Prevents Hose Twisting
The rotating connection allows the hose to move independently of the connected pump or pipeline. This helps prevent twisting, kinking, and unnecessary mechanical strain during operation.
Pressure-Resistant up to 20 Bar
The robust steel construction is designed for operating pressures of up to 20 bar, making the swivel suitable for demanding material pumping and industrial applications.
Male and Female Thread
With both a 2" male and 2" female thread, the swivel can be easily integrated into compatible hose, pump, and piping systems.
Versatile Applications
Originally developed for demanding pumping applications, the Swivel EZ is suitable for a wide range of industries and materials, from refractory and concrete pumping to agricultural and water applications.
Applications
Suitable for:
- Refractory material pumping
- Concrete pumping
- Mortar pumping
- Material hoses
- Industrial pump systems
- Construction equipment
- Agriculture
- Water management
- Industrial hose systems
- Applications where hose twisting needs to be minimized
Technical Information
- Product Type: Heavy-duty swivel coupling
- Model: Swivel EZ
- Nominal Size: 2"
- Material: Steel
- Female Thread: 2"
- Male Thread: 2"
- Length: 120 mm
- Diameter: 85 mm
- Maximum Operating Pressure: 20 bar
- Bearing: Double-row ball bearing
- Function: Rotating hose and pump connection
- Additional Sizes: Smaller and larger flow diameters available
