Flexible Drive Coupling GA000-013

Product name: SGFlex-080.02

Use in the machines: Utiform V2, Turbosol T20, Euromair CP60 and CP80 (46049)

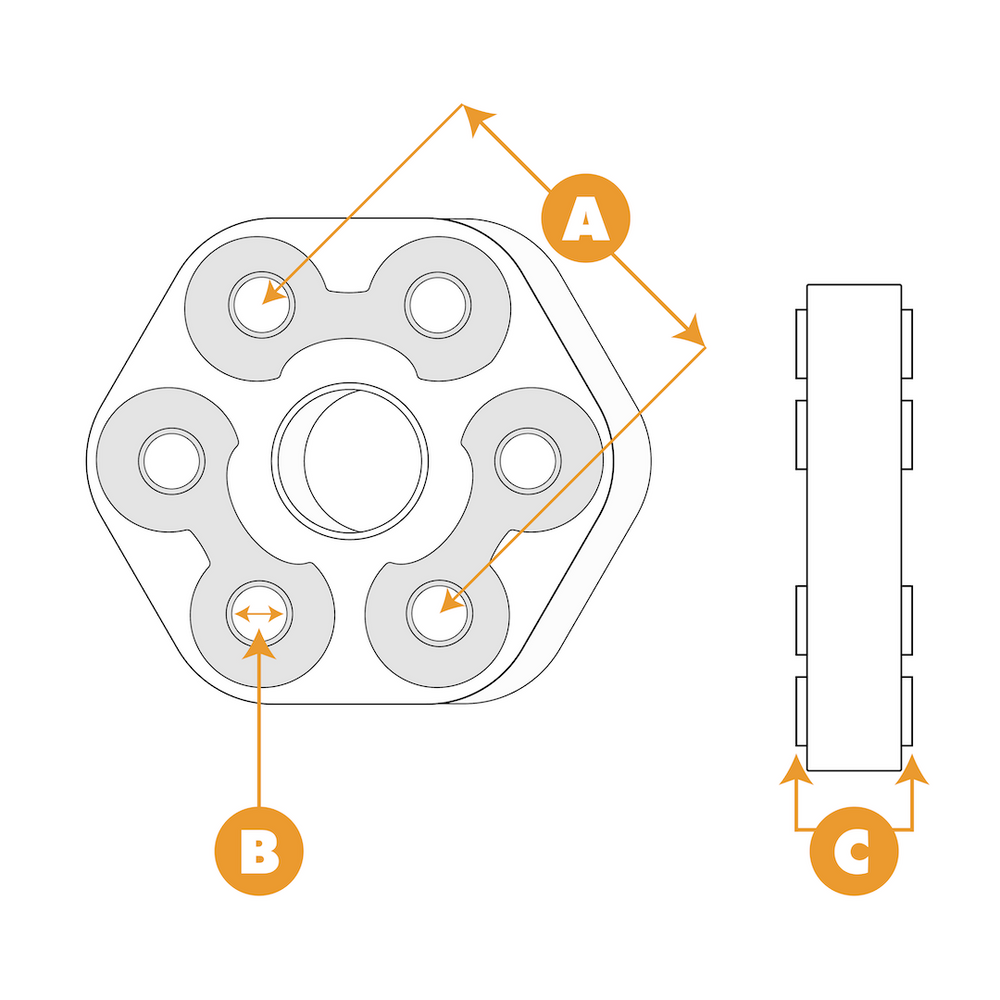

Technical Data for the Flex Disc GA000-013

• Nominal Torque: 260 Nm
• Outer diameter: 115 mm
• Bolt circle diameter BCD (A): 80 mm
• Center hole diameter: 40 mm
• Width (C): 22 mm
• Bolt hole diameter (Brushing hole diameter) (B): 12,15 mm
• Thread type: 6 x M12
• Bolt hole count: 6
• Weight: 0.36kg

Make: Industrial
Brand: SGF

Article number: 080.02, SGFlex-080.02
