PFT G4 Spare Parts & Rotor Stators, Compatible

Sort by

69 products

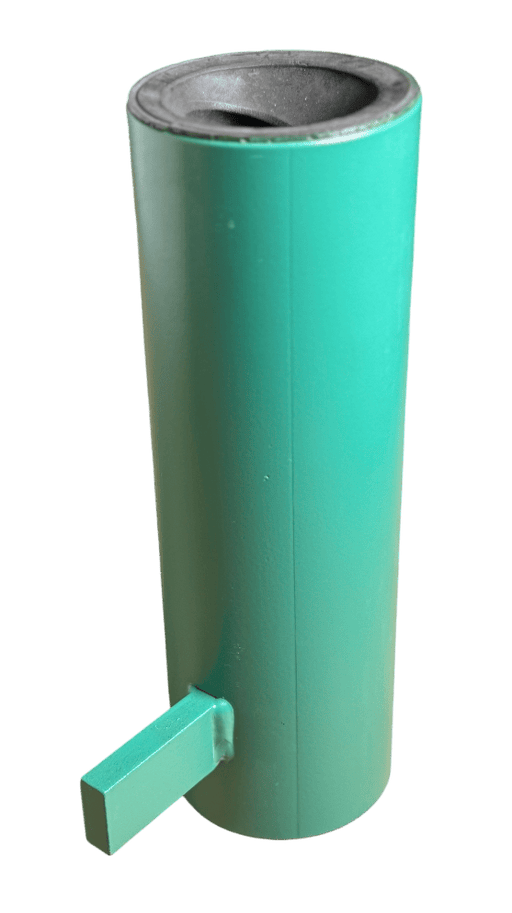

Stator D6-3 Eco

€50,40 - €50,40

€50,40

€50,40 - €50,40

€50,40

Stator D6-3 Eco – Maintenance-Free The Stator D6-3 Eco is a maintenance-free stator designed for professional rotor stator pump systems used in pla...

View full details

Stator D5-2.5 ECO

€71,40 - €71,40

€71,40

€71,40 - €71,40

€71,40

Stator D5-2.5 ECO Pink Stator with Integrated Clamp for D5-2.5 ECO Screw Pump Also known as m-tec Ecostar Made in Germany The D5-2.5 ECO Stator, ...

View full details

Rotor D8-1.5

€51,14 - €65,10

€51,14

Rotor D8-1.5 Rotor for D8-1.5 Screw Pump Made in Germany The D8-1.5 Rotor is a premium-quality rotor designed for use with the D8-1.5 progressive c...

View full details

Rotor D6-3 Eco

€51,24 - €51,24

€51,24

€51,24 - €51,24

€51,24

Rotor D6-3 Eco – High-Alloy Tool Steel The Rotor D6-3 Eco is a durable and cost-effective rotor designed for professional rotor stator pump systems...

View full details

Rotor D5-2.5 ECO

€54,60 - €54,60

€54,60

€54,60 - €54,60

€54,60

Rotor D5-2.5 ECO Rotor for D5-2.5 ECO Screw Pump Made in Germany The D5-2.5 ECO Rotor is a high-quality rotor designed for use with the D5-2.5 EC...

View full details

D5-2.5 ECO Rotor Stator Set

€113,40 - €113,40

€113,40

€113,40 - €113,40

€113,40

Rotor Stator Set D5-2.5 ECO D Pump Family – D5-2.5 ECO Not to be confused with D5-2.5 Made in Germany The D5-2.5 ECO Rotor Stator Set is part of th...

View full details

Rotor D6-3

€47,25 - €47,25

€47,25

€47,25 - €47,25

€47,25

Rotor D6-3 Replacement Rotor for D6-3 & D6-3 Drill Screw Pumps Made in Germany The D6-3 Rotor is the matching replacement rotor for the D6-3 an...

View full details

Membrane for K2

€10,61 - €10,61

€10,61

€10,61 - €10,61

€10,61

Membrane for K2 Air Compressor – PFT G4 / G5 Replacement Membrane for K2 Compressor The Membrane for K2 Air Compressor is a replacement component f...

View full details

Air Compressor K2

€1.003,59 - €1.003,59

€1.003,59

€1.003,59 - €1.003,59

€1.003,59

Handy K2 Air Compressor – 400 V Original Handy K2 Air Compressor with Pressure Switch The Handy K2 Air Compressor is a compact and proven compresso...

View full details

Pressure Reducer Valve (Low Pressure) 3/4"

€141,44 - €141,44

€141,44

€141,44 - €141,44

€141,44

Pressure Reducer Valve – Low Pressure 3/4" Low-Pressure Reducing Valve for PFT G4 & VEP VR8 The 3/4" Low-Pressure Reducer Valve is designed for...

View full details

Pressure Reducer Valve (Low Pressure) 3/4"

Cleaning Shaft for PFT G4 and G5 Mixing Tube

Cleaning Shaft G4/G5

€24,68 - €24,68

€24,68

€24,68 - €24,68

€24,68

Cleaning Shaft for PFT G4 / G5 Cleaning Shaft for PFT G4 and G5 Plastering Machines The Cleaning Shaft for PFT G4 / G5 is used for cleaning the mix...

View full details

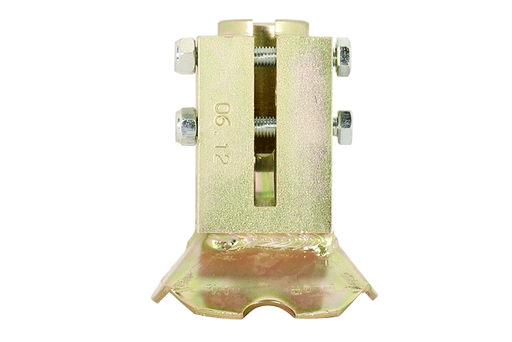

Driver Claw / Hauling Bracket G4 25mm

€40,69 - €40,69

€40,69

€40,69 - €40,69

€40,69

Driver Claw / Hauling Bracket G4 – 25 mm Driver Claw with Catching Funnel and Screws for PFT G4 The Driver Claw / Hauling Bracket G4 25 mm is a rep...

View full details

Driver Claw / Hauling Bracket G4 25mm

Suction Flange Silver

€50,40 - €50,40

€50,40

€50,40 - €50,40

€50,40

Suction Flange Silver for PFT G4 & G5 Replacement Suction Flange for PFT G4 and G5 The Silver Suction Flange is a replacement part designed for...

View full details

Pressure Flange for PFT G4

€48,67 - €48,67

€48,67

€48,67 - €48,67

€48,67

Pressure Flange for PFT G4 Pressure Flange with 1 1/4" Thread for PFT G4 The Pressure Flange for PFT G4 is installed directly underneath the rotor ...

View full details

R7-1.5 Rotor Stator Set

€260,40 - €260,40

€260,40

€260,40 - €260,40

€260,40

R7-1.5 Rotor Stator Set High-Output Screw Pump for Screed & Shotcrete – 60 l/min Made in Germany The R7-1.5 Rotor Stator Set is a powerful prog...

View full details

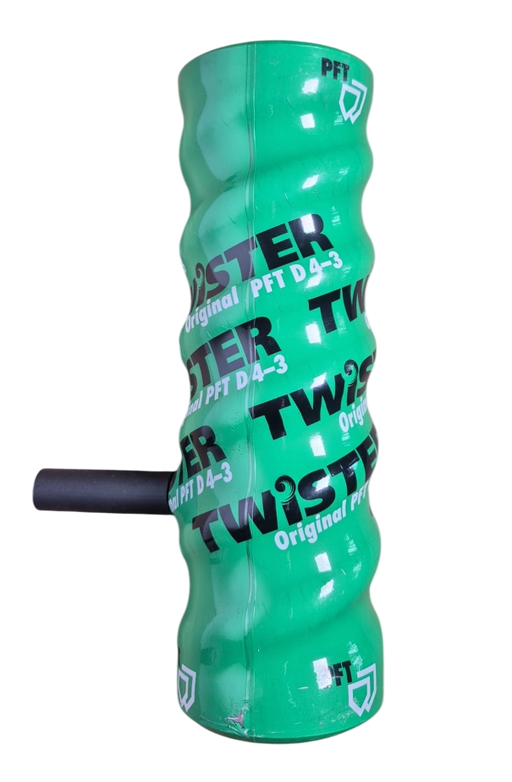

Stator TWISTER D 4-3 PIN, clockwise rotation

€71,82 - €71,82

€71,82

€71,82 - €71,82

€71,82

Stator TWISTER D 4-3 PIN (Clockwise Rotation) The Stator TWISTER D 4-3 PIN (Clockwise Rotation) is a high-performance stator designed for professio...

View full details

Stator TWISTER D 4-3 PIN, clockwise rotation

Stator D6-3 "Drill"

€43,05 - €43,05

€43,05

€43,05 - €43,05

€43,05

Stator D6-3 "Drill" Stator for D6-3 "Drill" Screw Pump Made in Germany The D6-3 "Drill" Stator is a premium-quality stator designed for use with th...

View full details

Stator D6-2

€50,40 - €50,40

€50,40

€50,40 - €50,40

€50,40

Stator D6-2 Stator for D6-2 Screw Pump Made in Germany The D6-2 Stator is a premium-quality stator designed for use with the D6-2 progressive cavit...

View full details

Stator D5 Short

€46,20 - €46,20

€46,20

€46,20 - €46,20

€46,20

Stator D5 Short Stator for D5 Short Screw Pump Made in Germany The D5 Short Stator is a premium-quality stator designed for use with the D5 Short p...

View full details

Stator D5 Long

€77,70 - €77,70

€77,70

€77,70 - €77,70

€77,70

Stator D5-Long Stator for D5-Long Screw Pump Made in Germany The D5-Long Stator is a premium-quality stator designed for use with the D5-Long progr...

View full details

Stator D5-2.5

€39,90 - €39,90

€39,90

€39,90 - €39,90

€39,90

Stator D5-2.5 D5-2.5 Stator for Plastering Applications – Made in Germany The D5-2.5 Stator is the matching stator for the D5-2.5 Screw Pump / Roto...

View full details

Stator D4-1/4

€49,60 - €69,80

€49,60

Stator D4-1/4 Stator for D4-1/4 Screw Pump Made in Germany The D4-1/4 Stator is a premium-quality stator designed for use with the D4-1/4 progressi...

View full details

Stator D4-1/2

€49,90 - €68,80

€49,90

Stator D4-1/2 Stator for D4-1/2 Screw Pump Made in Germany The D4-1/2 Stator is a premium-quality stator designed for use with the D4-1/2 progressi...

View full details

Stator D4-1/1

€66,68 - €66,68

€66,68

€66,68 - €66,68

€66,68

Stator D4-1/1 Stator for D4-1/1 Screw Pump Made in Germany The D4-1/1 Stator is a premium-quality stator designed for use with the D4-1/1 progressi...

View full details

The PFT G4 is a mixing pump for gypsum and lime plasters, cement and lime-cement plasters, insulating plasters, masonry mortar and flowing screed. Here you find spare and wear parts suitable for it: D- and R-series rotor stators, the pressure flange and suction flanges, mixing shafts and driver claws, the mixing tube cleaner, water fittings such as the 150-1500 l/h water flow meter, and parts for the K2 compressor. These are our own or compatible parts, not original PFT parts. Each product page says which machines it fits.

Not sure which part you need? Send us the serial number of your G4 and a photo of the old part, and we'll confirm it before you order. Contact our team.

Rotor stators for the PFT G4

PFT's own operating manual lists the TWISTER D6-3 as the G4's standard pump: about 20 l/min at 400 rpm, up to 30 bar, grain up to 3 mm. The G4 takes D-pumps on the D suction flange and R-pumps on the R-pump suction flange. These pumps from our range are suitable for the G4:

D6-3 and PFT Twister D6-3: the standard size, the Twister is the genuine PFT version.
D6-3 "Drill": 89 mm stator, 73 Shore. The standard size for plaster.
D7-2.5: for materials up to 5 mm grain.
D8-2: 34 l/min at 400 rpm, grain up to 3 mm.
D8-1.5: 38 l/min at 400 rpm, grain up to 3 mm, with integrated adjustable clamp.
R7-1.5: 114.3 mm stator, 60 l/min at 400 rpm, grain up to 7 mm. For screed. Needs the R-pump suction flange.
SD 6-3 Slimline Soft: for the 230 V version of the G4.

The G4 takes every D-series rotor stator. The D6-3 is the most common plaster pump. The D8-1.5 gives higher output at less pressure, and the R7-1.5 is for screed. All D pumps rotate to the right (clockwise).

Buy the rotor and stator as a set, or just the part that is worn. Not sure which size suits your material? Tell us what you pump and we'll recommend one.

Spare parts for every assembly of the PFT G4

Pump end: the pressure flange with 1 1/4" thread, the silver suction flange for D-pumps and the suction flange for R-pumps.
Mixing: the 520 mm helical blade mixing shaft, the BIONIK mixing shaft (clockwise), the driver claw with catching funnel in 25 mm and 30 mm, the driving claw for the G4 Bionics, and the mixing tube cleaner with its cleaning shaft.
Hopper: the protection grille.
Water: water flow meters 150-1500 l/h and 100-1000 l/h, the 1/2" needle valve for fine water adjustment, the 3/4" low-pressure reducer valve, the 1/2" 42 V solenoid valve and the FF4-4 pressure switch.
Compressed air: the K2 compressor, its air filter, cylinder head and membrane.

Many of these parts are shared with the PFT G5. The product page says so where that applies. For the other PFT machines, see our PFT collection.

Wear parts to keep in stock

On a mixing pump, the parts that wear fastest touch the material: the stator and rotor, the mixing shaft, the driver claw and the mixing tube cleaner. How fast depends on the material. Coarse, abrasive plasters and screeds wear them much faster than fine products. The water flow meter is a common replacement part too. If your G4 runs every day, a spare stator and a mixing shaft on the van can save a day on site.

About the PFT G4

The PFT G 4 XL is PFT's entry-level mixing pump for ready-mixed dry mortar. It runs on 400 V three-phase with a 5.5 kW pump motor. On request it comes with a switchable frequency converter (FU) for 230 and 400 V. The hopper holds 150 l, or 200 l with the extension. You can fill it by hand from bags or mount it under a silo or container with the PFT delivery hood. With the standard pump, PFT gives a conveying distance of up to 30 m with a 25 mm hose and up to 50 m with a 35 mm hose, depending on material, height and pump condition.

The G4 has been built in several generations. The parts on this page fit the G4 with D- or R-pump. If your machine is a newer version, send us the serial number and we'll check.

Frequently Asked Questions About PFT G4 Spare Parts

Which rotor stator fits the PFT G4?

PFT fits the TWISTER D6-3 as standard: about 20 l/min at 400 rpm, grain up to 3 mm. From our range, the D6-3 "Drill", D7-2.5, D8-2 and D8-1.5 are suitable on the D suction flange, the R7-1.5 on the R-pump suction flange, and the SD 6-3 Slimline Soft on the 230 V G4. Every D-series rotor stator fits the G4. The D6-3, including the genuine PFT Twister D6-3, is the most common plaster pump. The D8-1.5 gives higher output at less pressure. All D pumps rotate to the right (clockwise).

Where do I find the part number for my G4?

PFT prints the spare parts lists with drawings in part 2 of the G4 operating manual. PFT part numbers have eight digits, for example 20 10 10 10. If you don't have the manual, send us the machine's serial number and a photo of the old part, and we'll identify it.

Do you ship G4 parts outside Germany?

Yes. We ship from Berlin across Europe and internationally.

Are these original PFT parts?

Most are our own or compatible parts made to fit the G4. The PFT Twister D6-3 set and stator are genuine PFT. Each product page says which machines a part fits.

Which compressor does the G4 use?

PFT fits the G4 with the K2 N compressor, 0.25 Nm³/min. We carry the K2 compressor and, suitable for the G4, its air filter, cylinder head and membrane.

Are the prices net?

Yes. All prices are net, excluding VAT. For larger quantities or dealer orders, ask us for a quote.
