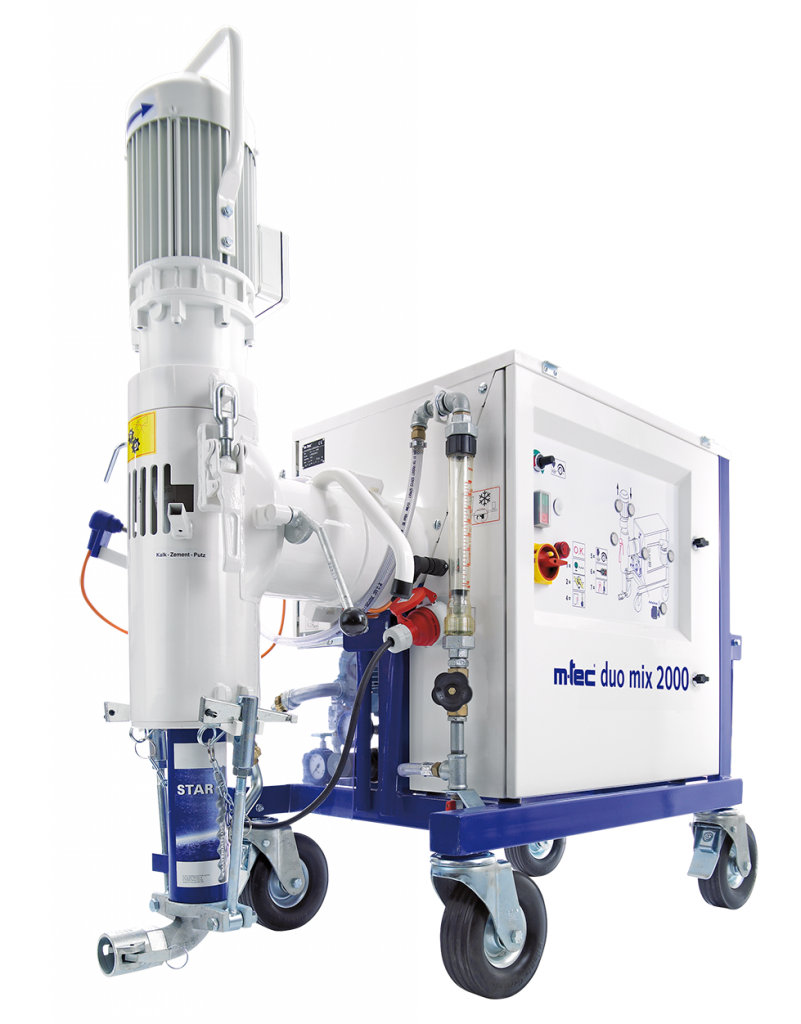

M-Tec Duo Mix 2000
The mixing pump
Often referred to as the “the clever and convenient King of the building site,” the M-Tec Duo Mix delivers tremendous mixing and unrivalled versatility for a wide variety of materials.
It’s unique with a winning formula, combining the M-Tec dual mixing system with the patented mixing principle for outstanding performance. Even the materials that are particularly difficult to mix become a breeze thanks to the adjustable output that can be swiftly fine-tuned to suit your specific application, no matter how specialist your job may be.
M-Tec Duo Mix 2000 fields of application
- Bricklaying mortar
- Cement plasters
- Lime plaster
- Reinforcing and adhesive mortars
- Finishing plasters
- Floor screed
- Flowing screeds
- Insulating plaster
- Gypsum plasters
- Lime-gypsum plasters
- Cementitious renders
- Lime-cement plasters
- Decorative renders
- Flowing screeds
- Levelling compounds
How can the Duo Mix improve your workflow?
It’s more than just a mixing pump; it can also be easily converted into a continuous mixer or a mortar pump for processing paste materials (in just a handful of steps). The cutting-edge technology allows you to continue operating without interruptions, downtime and consistency issues.
We know full well that as beneficial as these plastering machines can be, the best models are laid out in a pleasant, user-friendly manner, and the M-Tec Duo Mix certainly succeeds in this respect. With clearly laid-out controls, a self-explanatory flowchart control encompassing an error code display (duo-mix 2000 only), lifting handles and tensioning wedges, it’s easy to handle for operators of all experience levels. Even if you’re using the machine for the very first time, you’ll discover that you can boost productivity drastically whilst you can achieve a particularly long conveying distance. There is no need to waste precious time undertaking strenuous physical activity relocating the Duo-Mix.
The Duo Mix 2000 mixing technology
It has been cleverly designed by M-Tec to process all standard dry mortar products up to a grain size of 4mm.
The material transfer from the dosing area to the mixing area. Unlike many other machines where water is sprayed at the dosing material, the M-Tech Duo-Mix sprinkles it carefully into a pool of water before beginning the mixing process. This ensures the materials are blended evenly, delivering first-class processing while any additives are guaranteed to take full effect.
There are also plenty of optional extras with this model, such as the filter hood, feeding hood, rotors/stators, mortar hoses, adhesive gun and fine plaster spray gun, which are recommended if you’re looking to make full use of the available technology.
|Standard delivery volume approx.||22 l/min (depending on worm pump 5 – 60 l/min)|
|Conveying distance:||up to 60 m *|
|Conveying height:||up to 30 m *|
|Conveying pressure:||up to 30 bar *|
|Conveying:||3.0 kW, 400 V, 50 Hz|
|Mixing / Pump:||5.5 kW, 400 V, 50 Hz|
|Compressed air supply:||0.9 / 1.1 kW, approx. 250/360 l/min, 4 bar|
|Water pump:||0.75 kW, approx. 60 l/min, 4 bar|
|Electrical connection:||400 V, 50 Hz, 3 ph|
|Connecting cable:||5 x 4.0 mm²|
|Connector:||32 A, 5p, 6h|
|Water supply:||3/4“ water hose with GEKA coupling, required water pressure/min. 2.5 bar while the machine is running|
|Dimensions: approx.||1350 x 640 x 1390 mm|
|Weight:||250 kg / 260 kg|
If you need any advice on this model or any of our other plastering machines, or wish to speak to us about how it can improve speed, efficiency and profits without compromising on quality or durability, please speak to us today, as we’d be glad to assist.
