PFT G4 Spare Parts & Rotor Stators, Compatible

Sort by

69 products

Rotor D7-2.5

€47,25 - €52,50

€47,25

Rotor D7-2.5 Rotor for D7-2.5 Screw Pump Made in Germany The D7-2.5 Rotor is a premium-quality rotor designed for use with the D7-2.5 progressive c...

View full details

Rotor D6-2

€58,80 - €58,80

€58,80

€58,80 - €58,80

€58,80

Rotor D6-2 High-Alloy Tool Steel Rotor for the D6-2 Screw Pump Made in Germany The D6-2 Rotor is the matching replacement rotor for the D6-2 screw ...

View full details

Rotor D5 Short

€47,25 - €47,25

€47,25

€47,25 - €47,25

€47,25

Rotor D5 Short Rotor for D5 Short Screw Pump Made in Germany The D5 Short Rotor is a premium-quality rotor designed for use with the D5 Short progr...

View full details

Rotor D5 Long

€71,40 - €71,40

€71,40

€71,40 - €71,40

€71,40

Rotor D5-Long Rotor for D5-Long Screw Pump Made in Germany The D5-Long Rotor is a premium-quality rotor designed for use with the D5-Long progressi...

View full details

Rotor D5-2.5

€60,90 - €60,90

€60,90

€60,90 - €60,90

€60,90

Rotor D5-2.5 D5-2.5 Rotor for Plastering Applications – Made in Germany The D5-2.5 Rotor is the matching rotor for the D5-2.5 Screw Pump / Rotor St...

View full details

Rotor D4 FH (D2 with integrated clamp set)

€77,70 - €77,70

€77,70

€77,70 - €77,70

€77,70

Rotor D4 FH – D2 with Integrated Clamp Replacement Rotor for the D4 FH / D2 Screw Pump The D4 FH Rotor, also associated with the D2 with integrated...

View full details

Rotor D4 FH (D2 with integrated clamp set)

D4-1/4 Rotor for D4-1/4 Screw Pump, Tool Steel

Rotor D4-1/4

€62,90 - €62,90

€62,90

€62,90 - €62,90

€62,90

Rotor D4-1/4 Rotor for D4-1/4 Screw Pump Made in Germany The D4-1/4 Rotor is a premium-quality rotor designed for use with the D4-1/4 progressive c...

View full details

Rotor D4-1/2

€64,37 - €64,37

€64,37

€64,37 - €64,37

€64,37

Rotor D4-1/2 Rotor for D4-1/2 Screw Pump Made in Germany The D4-1/2 Rotor is a premium-quality rotor designed for use with the D4-1/2 progressive c...

View full details

Rotor D4-1/1

€78,02 - €78,02

€78,02

€78,02 - €78,02

€78,02

Rotor D4-1/1 Rotor for D4-1/1 Screw Pump Made in Germany The D4-1/1 Rotor is a premium-quality rotor designed for use with the D4-1/1 progressive c...

View full details

Rotor D 4-3, clockwise rotation

€75,50 - €75,50

€75,50

€75,50 - €75,50

€75,50

Rotor D 4-3 (Clockwise Rotation) The Rotor D 4-3 (Clockwise Rotation) is a high-performance rotor designed for professional plastering machines, mo...

View full details

Rotor D 4-3, clockwise rotation

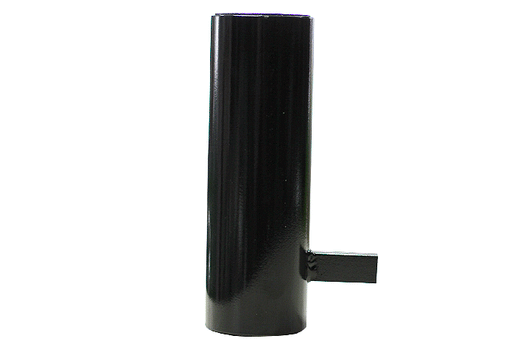

Stator D8-2

€50,40 - €68,25

€50,40

Stator D8-2 – Integrated Clamp or Maintenance-Free D8-2 Stator for Plastering & Mortar Pumps – 34 l/min Made in Germany The D8-2 Stator is the ...

View full details

Rotor D8-2

€47,25 - €75,60

€47,25

Rotor D8-2 High-Alloy Tool Steel Rotor for the D8-2 Screw Pump Made in Germany The D8-2 Rotor is the matching replacement rotor for the D8-2 screw ...

View full details

Cylinder head for K2 compressor

€141,75 - €141,75

€141,75

€141,75 - €141,75

€141,75

Cylinder Head for K2 Compressor Replacement Cylinder Head for K2 Air Compressor – PFT G4 / G5 & Ülzener S48 The Cylinder Head for the K2 Compre...

View full details

Cylinder head for K2 compressor

Water Flow Meter 100-1000 l/h (for G4 and G5)

€69,83 - €69,83

€69,83

€69,83 - €69,83

€69,83

Water Flow Meter 100–1000 l/h (for G4 and G5) The Water Flow Meter 100–1000 l/h is a high-quality replacement component designed for professional p...

View full details

Water Flow Meter 100-1000 l/h (for G4 and G5)

Protection Grille G4

€101,22 - €101,22

€101,22

€101,22 - €101,22

€101,22

Protection Grille G4 The Protection Grille G4 is a safety component designed for PFT G4 mixing pumps and similar plastering machines. It serves as ...

View full details

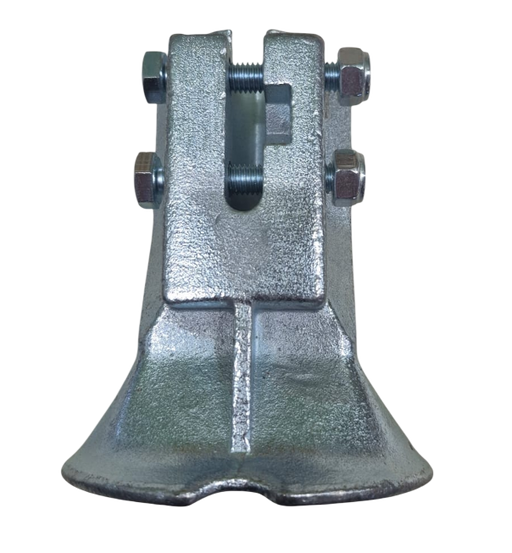

Driving claw G4 Bionics

€55,13 - €55,13

€55,13

€55,13 - €55,13

€55,13

Driving Claw G4 Bionics The Driving Claw G4 Bionics is a high-performance drive component designed for professional mixing pumps, plastering machin...

View full details

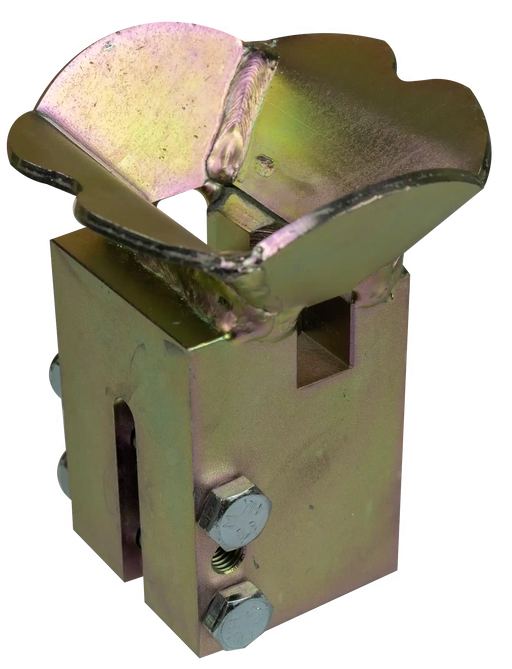

Driver Claw / Hauling Bracket G4 30mm

€40,69 - €40,69

€40,69

€40,69 - €40,69

€40,69

Driver Claw / Hauling Bracket G4 30 mm – Complete Intake Assembly for PFT G4 The Driver Claw / Hauling Bracket G4 30 mm is a complete intake and dr...

View full details

Driver Claw / Hauling Bracket G4 30mm

Mixing shaft BIONIK G 4 machine plaster, clockwise rotation

€60,38 - €60,38

€60,38

€60,38 - €60,38

€60,38

BIONIK Mixing Shaft for G4 Plastering Machines – Clockwise Rotation The BIONIK Mixing Shaft for G4 Plastering Machines is a high-performance mixing...

View full details

Mixing shaft BIONIK G 4 machine plaster, clockwise rotation

Suction flange G4 R-pumps

€106,16 - €106,16

€106,16

€106,16 - €106,16

€106,16

Suction Flange for PFT G4 R-Pumps The Suction Flange for R-pumps is a robust connection component designed for professional rotor stator pump syste...

View full details

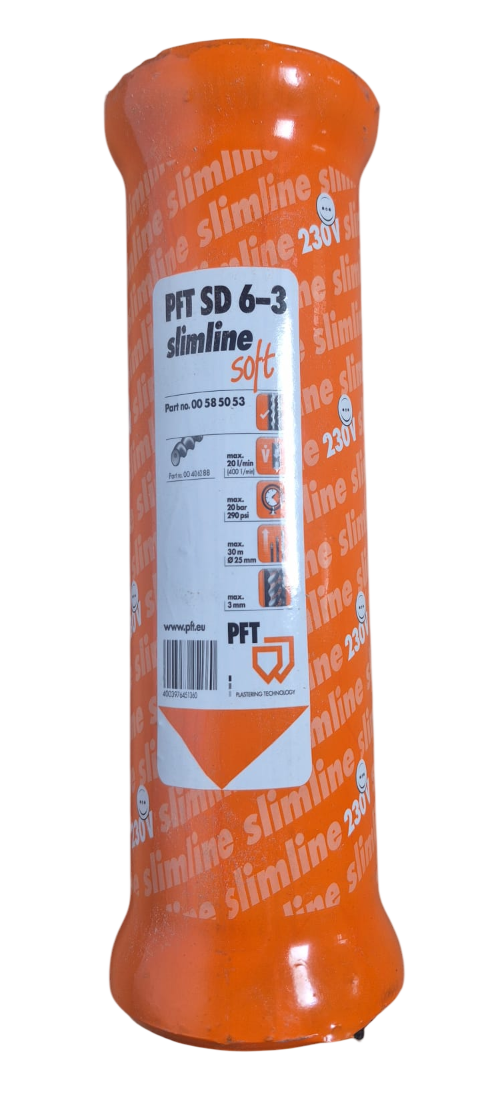

Stator SD 6-3 slimline soft

€51,98 - €51,98

€51,98

€51,98 - €51,98

€51,98

SD 6-3 Slimline Soft Rotor Stator – Maintenance-Free High Performance Pumping System The SD 6-3 Slimline Soft rotor stator set is a high-performanc...

View full details

PFT G 4 XL

Spare parts for this machine: all PFT G4 spare parts and rotor stators. Entry-level ready mix pump The thoroughly thought-out design of the PFT G 4...

View full details

The PFT G4 is a mixing pump for gypsum and lime plasters, cement and lime-cement plasters, insulating plasters, masonry mortar and flowing screed. Here you find spare and wear parts suitable for it: D- and R-series rotor stators, the pressure flange and suction flanges, mixing shafts and driver claws, the mixing tube cleaner, water fittings such as the 150-1500 l/h water flow meter, and parts for the K2 compressor. These are our own or compatible parts, not original PFT parts. Each product page says which machines it fits.

Not sure which part you need? Send us the serial number of your G4 and a photo of the old part, and we'll confirm it before you order. Contact our team.

Rotor stators for the PFT G4

PFT's own operating manual lists the TWISTER D6-3 as the G4's standard pump: about 20 l/min at 400 rpm, up to 30 bar, grain up to 3 mm. The G4 takes D-pumps on the D suction flange and R-pumps on the R-pump suction flange. These pumps from our range are suitable for the G4:

D6-3 and PFT Twister D6-3: the standard size, the Twister is the genuine PFT version.
D6-3 "Drill": 89 mm stator, 73 Shore. The standard size for plaster.
D7-2.5: for materials up to 5 mm grain.
D8-2: 34 l/min at 400 rpm, grain up to 3 mm.
D8-1.5: 38 l/min at 400 rpm, grain up to 3 mm, with integrated adjustable clamp.
R7-1.5: 114.3 mm stator, 60 l/min at 400 rpm, grain up to 7 mm. For screed. Needs the R-pump suction flange.
SD 6-3 Slimline Soft: for the 230 V version of the G4.

The G4 takes every D-series rotor stator. The D6-3 is the most common plaster pump. The D8-1.5 gives higher output at less pressure, and the R7-1.5 is for screed. All D pumps rotate to the right (clockwise).

Buy the rotor and stator as a set, or just the part that is worn. Not sure which size suits your material? Tell us what you pump and we'll recommend one.

Spare parts for every assembly of the PFT G4

Pump end: the pressure flange with 1 1/4" thread, the silver suction flange for D-pumps and the suction flange for R-pumps.
Mixing: the 520 mm helical blade mixing shaft, the BIONIK mixing shaft (clockwise), the driver claw with catching funnel in 25 mm and 30 mm, the driving claw for the G4 Bionics, and the mixing tube cleaner with its cleaning shaft.
Hopper: the protection grille.
Water: water flow meters 150-1500 l/h and 100-1000 l/h, the 1/2" needle valve for fine water adjustment, the 3/4" low-pressure reducer valve, the 1/2" 42 V solenoid valve and the FF4-4 pressure switch.
Compressed air: the K2 compressor, its air filter, cylinder head and membrane.

Many of these parts are shared with the PFT G5. The product page says so where that applies. For the other PFT machines, see our PFT collection.

Wear parts to keep in stock

On a mixing pump, the parts that wear fastest touch the material: the stator and rotor, the mixing shaft, the driver claw and the mixing tube cleaner. How fast depends on the material. Coarse, abrasive plasters and screeds wear them much faster than fine products. The water flow meter is a common replacement part too. If your G4 runs every day, a spare stator and a mixing shaft on the van can save a day on site.

About the PFT G4

The PFT G 4 XL is PFT's entry-level mixing pump for ready-mixed dry mortar. It runs on 400 V three-phase with a 5.5 kW pump motor. On request it comes with a switchable frequency converter (FU) for 230 and 400 V. The hopper holds 150 l, or 200 l with the extension. You can fill it by hand from bags or mount it under a silo or container with the PFT delivery hood. With the standard pump, PFT gives a conveying distance of up to 30 m with a 25 mm hose and up to 50 m with a 35 mm hose, depending on material, height and pump condition.

The G4 has been built in several generations. The parts on this page fit the G4 with D- or R-pump. If your machine is a newer version, send us the serial number and we'll check.

Frequently Asked Questions About PFT G4 Spare Parts

Which rotor stator fits the PFT G4?

PFT fits the TWISTER D6-3 as standard: about 20 l/min at 400 rpm, grain up to 3 mm. From our range, the D6-3 "Drill", D7-2.5, D8-2 and D8-1.5 are suitable on the D suction flange, the R7-1.5 on the R-pump suction flange, and the SD 6-3 Slimline Soft on the 230 V G4. Every D-series rotor stator fits the G4. The D6-3, including the genuine PFT Twister D6-3, is the most common plaster pump. The D8-1.5 gives higher output at less pressure. All D pumps rotate to the right (clockwise).

Where do I find the part number for my G4?

PFT prints the spare parts lists with drawings in part 2 of the G4 operating manual. PFT part numbers have eight digits, for example 20 10 10 10. If you don't have the manual, send us the machine's serial number and a photo of the old part, and we'll identify it.

Do you ship G4 parts outside Germany?

Yes. We ship from Berlin across Europe and internationally.

Are these original PFT parts?

Most are our own or compatible parts made to fit the G4. The PFT Twister D6-3 set and stator are genuine PFT. Each product page says which machines a part fits.

Which compressor does the G4 use?

PFT fits the G4 with the K2 N compressor, 0.25 Nm³/min. We carry the K2 compressor and, suitable for the G4, its air filter, cylinder head and membrane.

Are the prices net?

Yes. All prices are net, excluding VAT. For larger quantities or dealer orders, ask us for a quote.
