Stator 2L6
Description
Stator 2L6 – Three Versions Available
2L6 Stator for Mortar, Screed, Grout & Refractory Applications
Made in Germany
The 2L6 Stator is the matching stator for the popular 2L6 screw pump / progressive cavity pump. It is available in three different designs to suit different applications and operating preferences:
- 2L6 Stator with slits

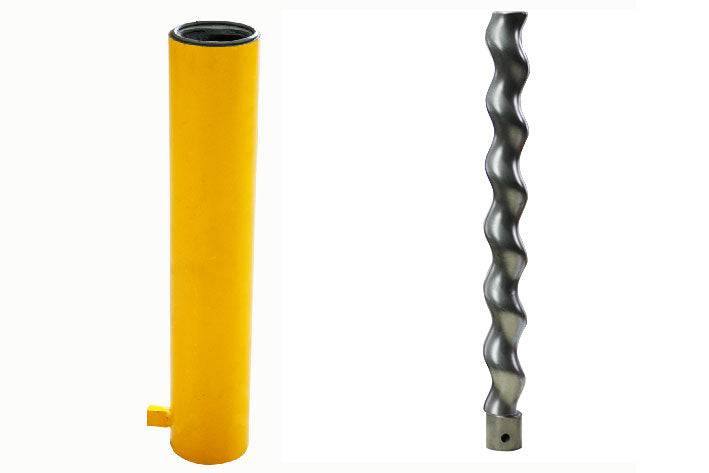

- 2L6 maintenance-free Stator
- 2L6 Stator with integrated clamp
All three stator versions have the same dimensions and are compatible with the 2L6 Rotor.
With a flow rate of up to 65 l/min at 400 RPM and a maximum grain size of 8 mm, the 2L6 is a versatile rotor stator pump used for conveying materials such as mortar, screed, grout, cement, and refractory material.
The 2L6 is used with various construction machines, including the Putzmeister S5 and Putzmeister SP11.
For optimum compatibility between rotor and stator, we recommend purchasing the complete 2L6 Rotor Stator Set, which can be supplied with the required stator version.
Key Features
- Stator for the 2L6 screw pump
- Made in Germany
-
Three stator designs available:
- With slits
- Maintenance-free
- With integrated clamp
- All versions compatible with the 2L6 Rotor
- Stator diameter: 101.6 mm
- Stator length: 535 mm
- Rubber hardness: 56 Shore
- Flow rate up to 65 l/min
- Maximum grain size: 8 mm
- Suitable for mortar, screed, grout, cement, and refractory material
- Used with machines including Putzmeister S5 and SP11
- Putzmeister article number: 211355007
Benefits
Three Stator Designs
The 2L6 is available in three different configurations, allowing you to select the stator design that best suits your application.

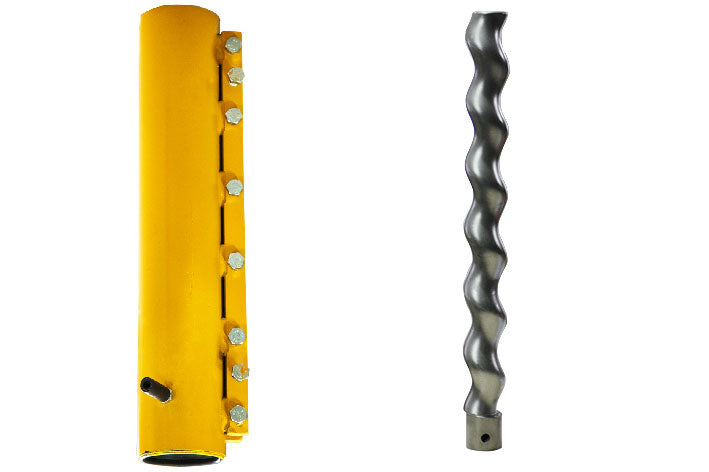

2L6 with Integrated Clamp
The version with an integrated clamp allows the stator tightness to be adjusted directly by tightening the integrated screws. No additional external clamp is required.
As the rotor and stator naturally wear during operation, pump performance may gradually decrease. The integrated clamp allows the stator to be carefully tightened to compensate for this wear.
Important: After adjusting the integrated clamp, allow the pump sufficient time to respond. It can take up to two minutes before the increase in material pressure becomes noticeable at the nozzle. Avoid immediately tightening the screws further, as excessive tightening can reduce the service life of the stator.
Maintenance-Free 2L6
The maintenance-free version is designed for straightforward operation without the need to manually adjust stator tension.

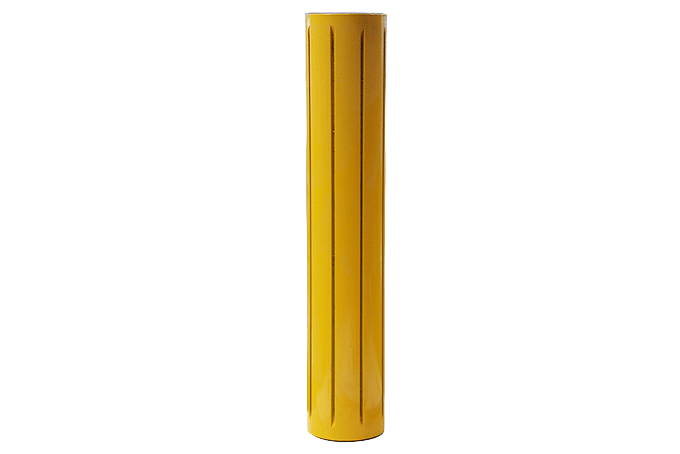

2L6 with Slits
The 2L6 is also available in a slotted stator design, providing a third configuration while maintaining the same dimensions and compatibility with the standard 2L6 rotor.
Versatile Material Pump
The 2L6 is a widely used screw pump capable of conveying a variety of construction materials, including:
- Mortar
- Screed
- Grout
- Cement-based materials
- Refractory material
Matched Rotor and Stator
All three stator versions work with the 2L6 Rotor. For optimum fit and pump performance, we recommend purchasing the complete 2L6 Rotor Stator Set.
Applications
The 2L6 is suitable for compatible:
- Putzmeister S5
- Putzmeister SP11
- Mortar pumps
- Screed pumps
- Grout pumps
- Progressive cavity pumps
- Construction machinery
- Refractory material pumping
- Cement-based material pumping
- Material pumping applications with grain sizes up to 8 mm
Technical Information
- Product Type: Stator
- Model: 2L6
- Made in: Germany
- Stator Diameter: 101.6 mm
- Stator Length: 535 mm
- Rubber Hardness: 56 Shore
- Flow Rate @ 400 RPM: 65 l/min
- Flow Rate @ 200 RPM: 34 l/min
- Maximum Grain Size: 8 mm
- Available Designs: Slotted, maintenance-free, integrated clamp
- Matching Rotor: 2L6 Rotor
- Compatible Machines: Putzmeister S5, Putzmeister SP11, and other compatible machines
- Putzmeister Article Number: 211355007
- Recommended: Complete 2L6 Rotor Stator Set
Machine Compatibility
