Stator 6012 Plus 146 Yellow
Description

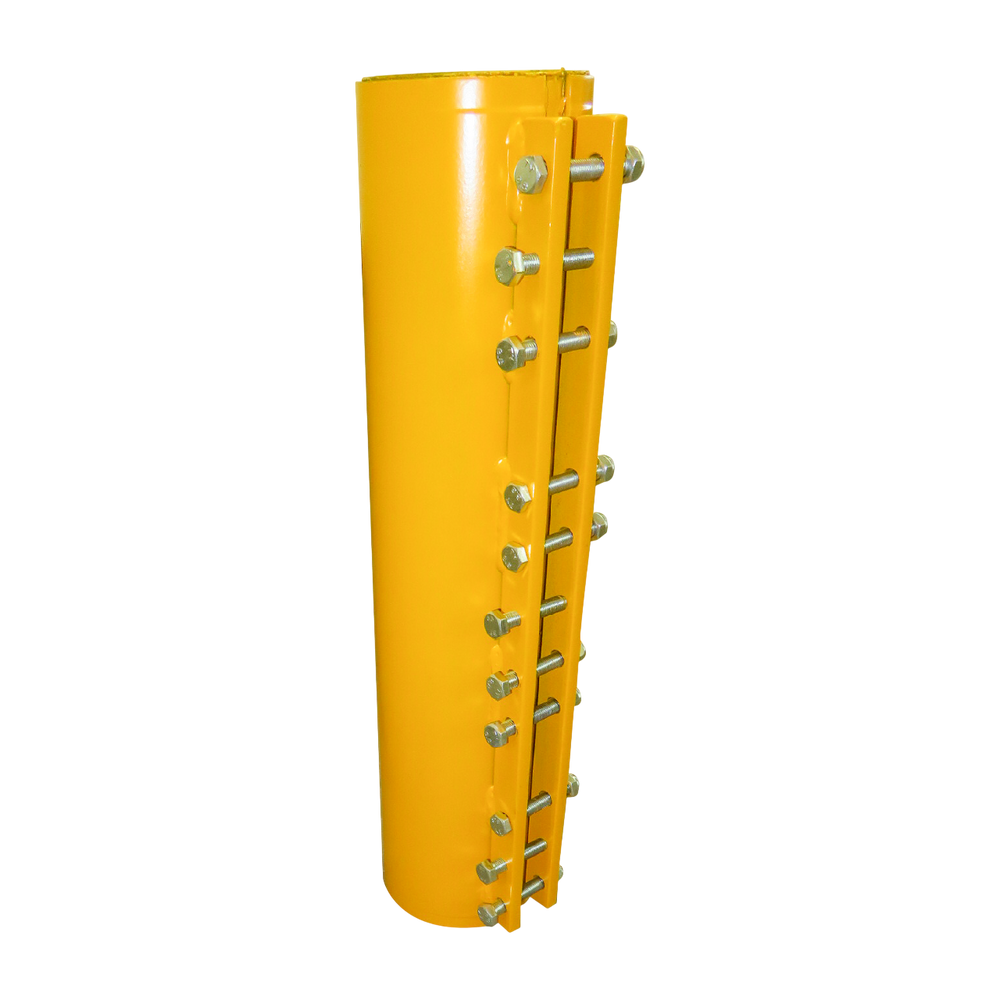

Stator 6012 Plus 146 Yellow
Yellow Stator with Integrated Clamp for 6012 Plus 146 Yellow Screw Pump
Made in Germany
The 6012 Plus 146 Yellow Stator is a high-quality stator designed for use with the 6012 Plus 146 Yellow progressive cavity pump (rotor stator pump). Manufactured in Germany, it provides reliable conveying performance, consistent pressure build-up, and long service life in demanding construction and material conveying applications.
With a diameter of 146 mm and a length of 650 mm, the stator is designed for use with the matching 6012 Plus 146 Yellow rotor. The stator features 63 Shore rubber quality, providing reliable sealing between rotor and stator, stable pumping performance, and good resistance to abrasive construction materials.
This stator is supplied in yellow and comes with an integrated clamp, allowing secure installation and practical adjustment during operation. It is suitable for materials with a maximum grain size of 12 mm, making it a strong choice for demanding conveying applications and coarse-grained materials.
For optimum pressure build-up, smooth material flow, and maximum service life, we recommend purchasing the complete 6012 Plus 146 Yellow Rotor Stator Set.
Key Features
- Made in Germany
- Stator for 6012 Plus 146 Yellow screw pump
- Stator diameter: 146 mm
- Stator length: 650 mm
- Rubber quality: 63 Shore
- Max. grain size: 12 mm
- Colour: Yellow
- Integrated clamp
- Compatible with 6012 Plus 146 Yellow rotor
Benefits
- Reliable conveying performance
- Consistent pressure build-up
- Secure fit with integrated clamp
- Good sealing between rotor and stator
- Suitable for coarse-grained materials
- High wear resistance
- Maximum performance when used as complete rotor stator set
Applications
Suitable for:
- Mortar pumps
- Plastering machines
- Screed pumps
- Grout pumps
- Progressive cavity pumps
- Construction machinery
- Material conveying systems
Technical Information
- Product Type: Stator
- Pump Size: 6012 Plus 146 Yellow
- Diameter: 146 mm
- Length: 650 mm
- Rubber Quality: 63 Shore
- Maximum Grain Size: 12 mm
- Colour: Yellow
- Version: Integrated clamp
- Compatible Rotor: 6012 Plus 146 Yellow Rotor
- Country of Origin: Germany
