Flexible Drive Coupling GA000-019

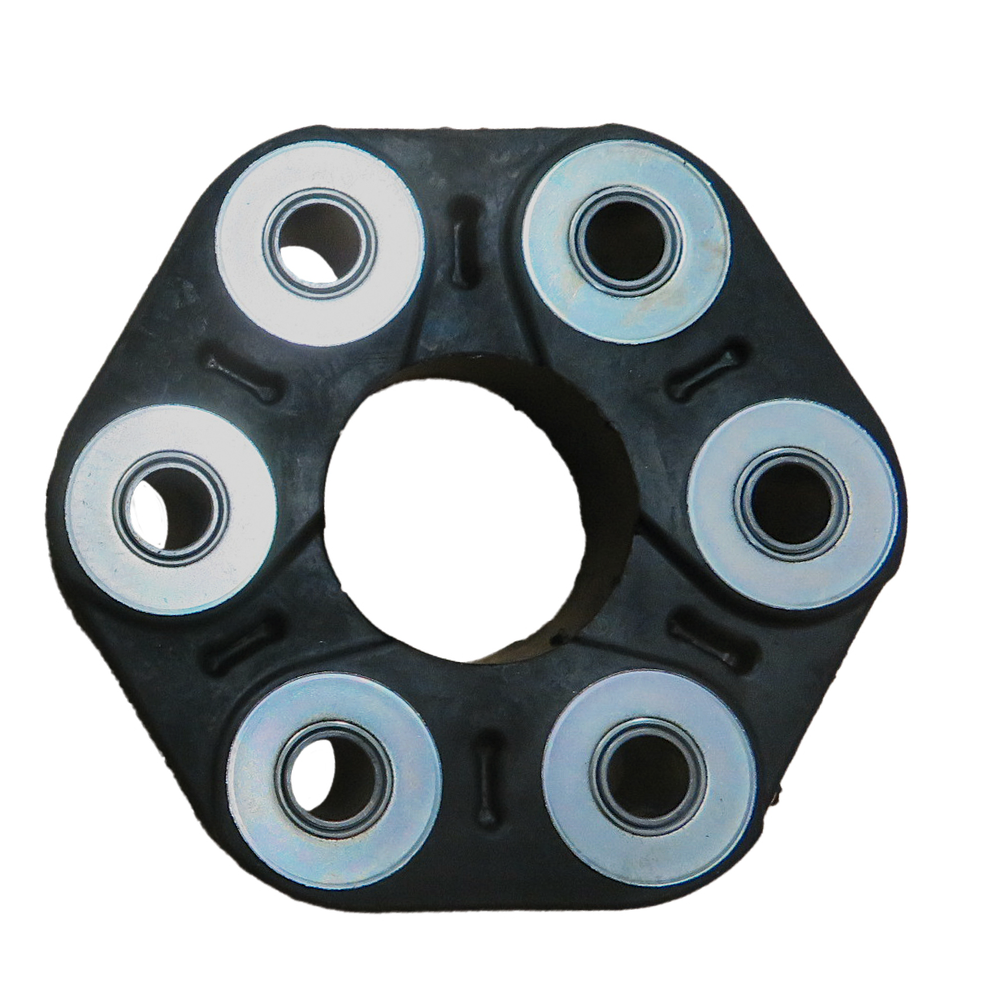

Flexible Drive Coupling GA000-019 back side

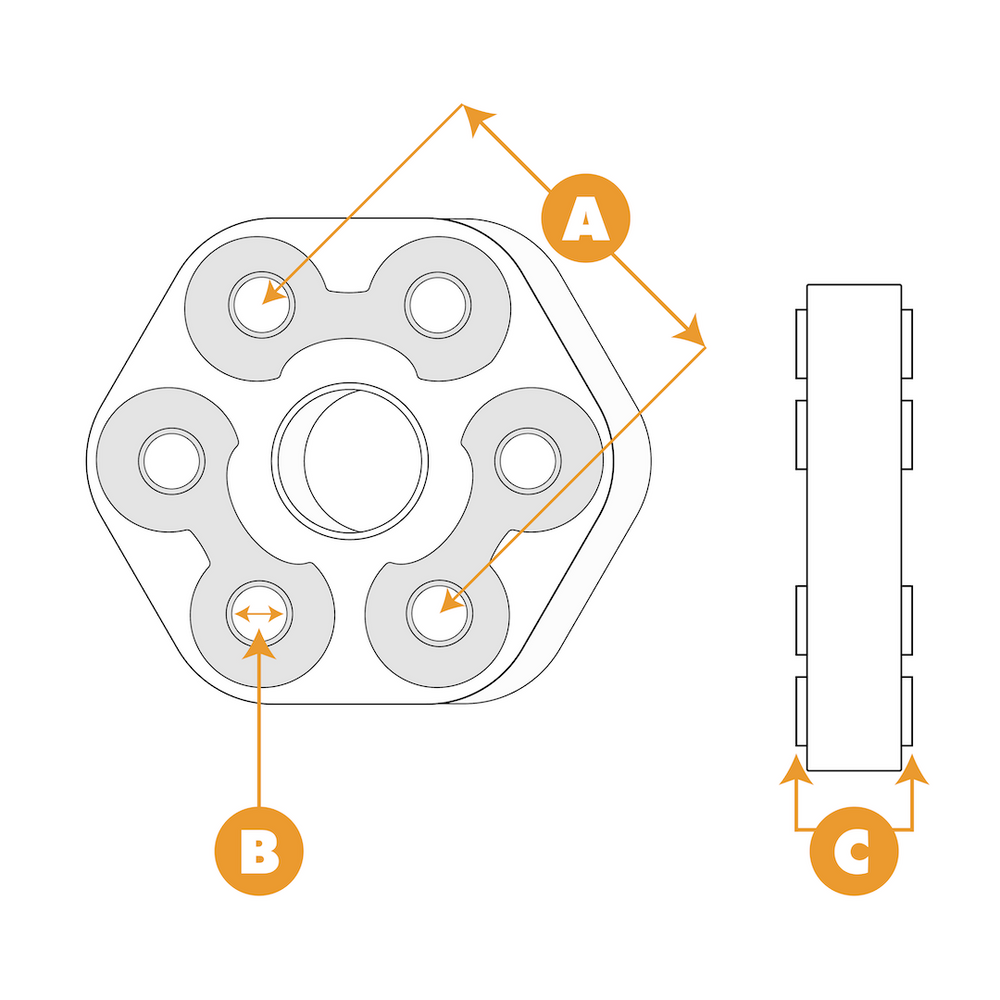

Flexible Drive Coupling GA000-019 sketch

Flexible Drive Coupling GA000-019

Register now to see the prices

Register

  • Worldwide shipping
  • In stock, ready to ship
  • Inventory on the way

Giubo Flexible Coupling
Product name: SGFlex-140.05

Use in the machine: Arnabat Rear

Technical Data: Flex Disc GA000-019

  • Nominal Torque: 1400 Nm
  • Outer diameter: 195 mm
  • Bolt circle diameter BCD (A): 140 mm
  • Center hole diameter: 70 mm
  • Width (C): 33 mm
  • Bolt hole diameter (B)(Brushing hole diameter): 18,15 mm
  • Thread type: M18
  • Bolt hole count: 6
  • Weight: 1,37kg

Make: Industrial
Brand: SGF

Article Number: GA000-019

For products weighing over 30kg, please contact us for a shipping fee quote.
