Rotor D6-2
Description

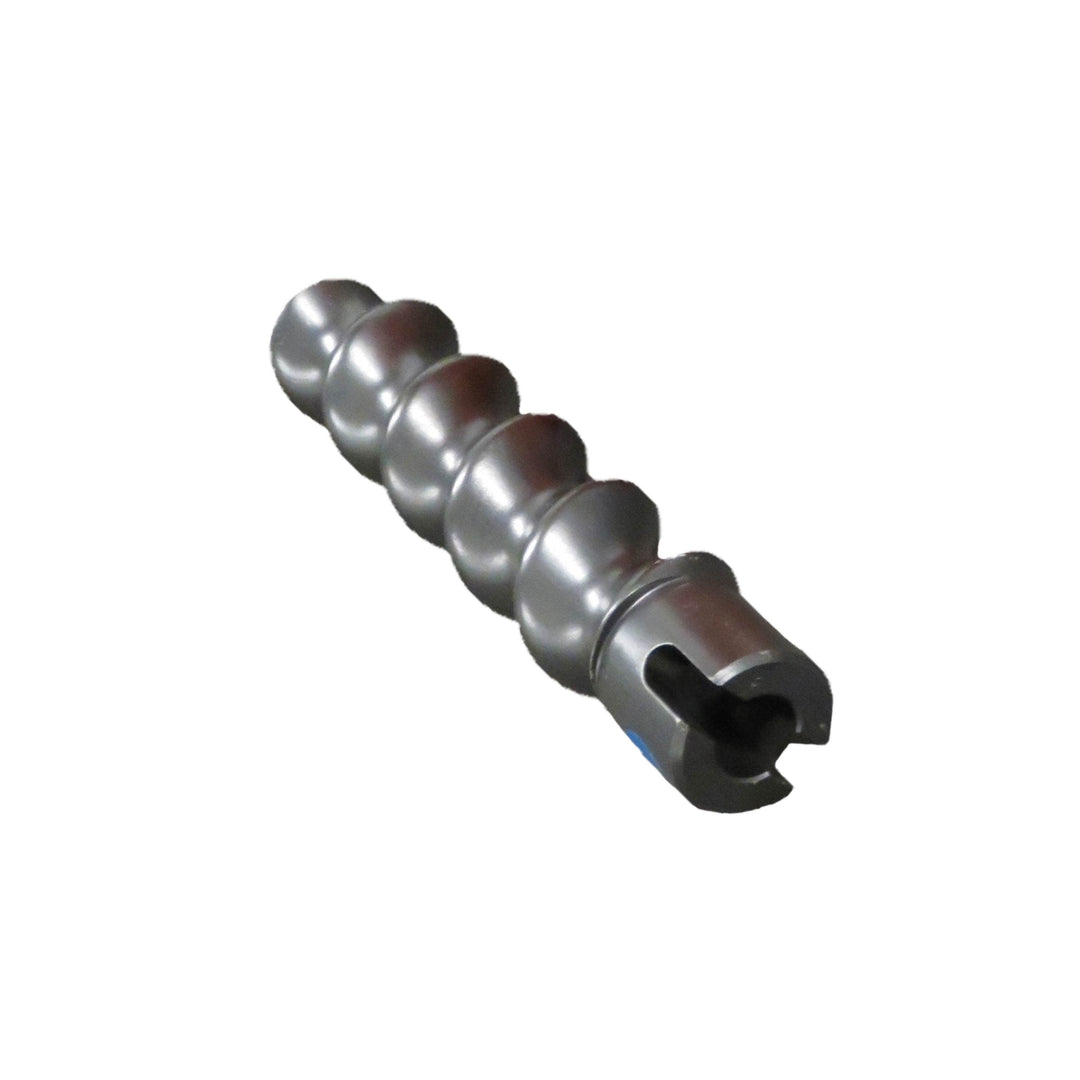

Rotor D6-2
High-Alloy Tool Steel Rotor for the D6-2 Screw Pump
Made in Germany
The D6-2 Rotor is the matching replacement rotor for the D6-2 screw pump, a compact progressive cavity pump used in professional plastering and mixing equipment.
Manufactured in Germany from high-alloy tool steel, the rotor is designed for use with the matching D6-2 Stator. The D6-2 pump is particularly suitable for gypsum plaster, lime-gypsum plaster, undercoat render, and lightweight render.
For a complete pump replacement, we recommend the D6-2 Rotor Stator Set, combining the matching rotor and stator as a complete screw pump.
Key Features
- Replacement rotor for the D6-2 screw pump
- Made in Germany
- Manufactured from high-alloy tool steel
- Designed for use with the matching D6-2 Stator
- Suitable for professional plastering and mixing pumps
- Available individually or as part of the complete D6-2 Rotor Stator Set
Applications
The D6-2 screw pump is suitable for compatible materials including:
- Gypsum plaster
- Lime-gypsum plaster
- Undercoat render
- Lightweight render
- Other compatible plaster and mortar materials
Its compact stator length of 200 mm distinguishes the D6-2 from longer D-series screw pumps.
Matching D6-2 Stator
The D6-2 Rotor is designed for use with the matching D6-2 Stator.
The D6-2 pump configuration features:
- Stator diameter: 89 mm
- Stator length: 200 mm
- Rubber hardness: 73 Shore
- Flow rate: 20 l/min at 400 RPM
- Flow rate: 10 l/min at 200 RPM
- Maximum grain size: 2 mm
Complete D6-2 Rotor Stator Set
When both pump components are worn, we recommend replacing the rotor and stator together with the complete D6-2 Rotor Stator Set.
A complete matched rotor and stator combination ensures that both primary components of the progressive cavity pump are replaced together.
Technical Information
- Product Type: Screw Pump Rotor
- Model: D6-2
- Made in: Germany
- Rotor Material: High-alloy tool steel
- Matching Stator: D6-2 Stator
- Matching Pump Set: D6-2 Rotor Stator Set
- Pump Flow Rate: 20 / 10 l/min at 400 / 200 RPM
- Maximum Grain Size: 2 mm
Machine Compatibility
This part is compatible with:
PFTG4
PutzmeisterMP25
ÜlzenerPutzknecht S48 · Putzknecht S44
TurbosolGiotto
V.E.P.VR6 · VR8
MaltechM5 · M2
ImerKoine 4
UtiformQuattro
BunkerB30
Kaleta5
Baproone 400V
