Stator 2L8
Description
Stator 2L8 – Integrated Clamp
High-Output 2L8 Stator – 560 l/min
Made in Germany
The 2L8 Stator is the matching stator for the 2L8 screw pump / progressive cavity pump. With an exceptionally high flow rate of up to 560 l/min at 400 RPM, the 2L8 is designed for demanding, high-volume material pumping applications.
The stator has a large 193 mm diameter, a length of 655 mm, and a rubber hardness of 63 Shore. It is suitable for materials with a maximum grain size of 16 mm.

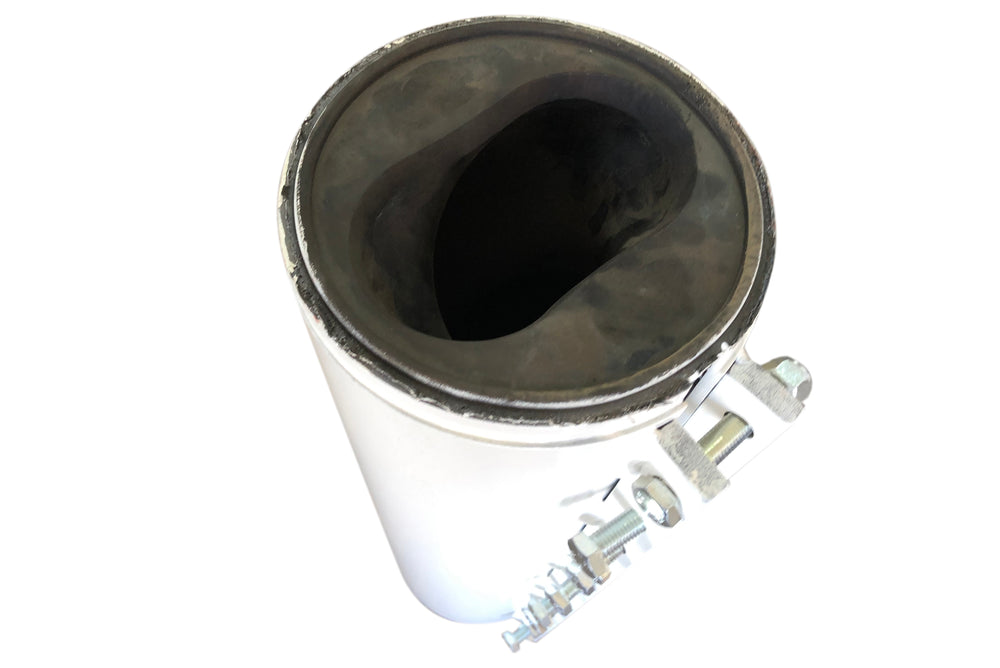

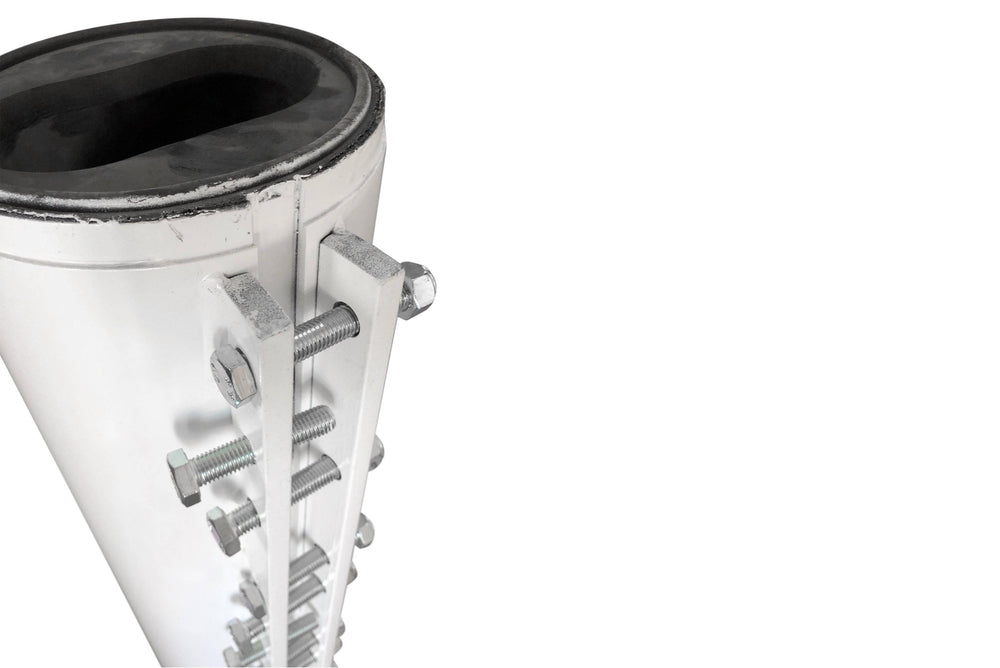

The standard 2L8 stator is supplied in white and features an integrated clamp, allowing the stator tightness to be adjusted as required.
An alternative orange version is also available, known as the 2L8 Long Life.
Manufactured in Germany, the 2L8 stator is designed to work with the matching 2L8 Rotor. For optimum compatibility and pump performance, we recommend purchasing the complete 2L8 Rotor Stator Set.
Putzmeister Spare Part Number: H7000508311
Key Features
- Stator for the 2L8 screw pump
- Made in Germany
- High flow rate of up to 560 l/min
- Large 193 mm stator diameter
- Stator length: 655 mm
- Rubber hardness: 63 Shore
- Maximum grain size: 16 mm
- Integrated clamp for adjustment
- Standard version: White
- Alternative version: Orange – 2L8 Long Life
- Matching 2L8 Rotor available
- Complete 2L8 Rotor Stator Set available
- Putzmeister spare part reference: H7000508311
Benefits
High Flow Rate – Up to 560 l/min
The 2L8 provides an exceptionally high material delivery rate of 560 l/min at 400 RPM and 280 l/min at 200 RPM, making it suitable for high-volume pumping applications.
Integrated Clamp
The stator features an integrated clamp, allowing the stator tightness to be adjusted as required.
For Materials up to 16 mm Grain Size
With a maximum permissible grain size of 16 mm, the 2L8 is designed for pumping compatible materials with significantly larger aggregate sizes than conventional smaller rotor stator pumps.
Standard and Long Life Versions
The standard 2L8 stator is white. An alternative orange 2L8 Long Life version is also available.
Matched Rotor and Stator
For optimum fit and pump performance, we recommend combining the stator with the matching 2L8 Rotor or purchasing the complete 2L8 Rotor Stator Set.
Applications
Suitable for compatible:
- High-output screw pumps
- Progressive cavity pumps
- Mortar pumps
- Screed pumps
- Material pumps
- Construction machinery
- High-volume material pumping
- Applications with grain sizes up to 16 mm
Technical Information
- Product Type: Stator
- Model: 2L8
- Made in: Germany
- Stator Diameter: 193 mm
- Stator Length: 655 mm
- Rubber Hardness: 63 Shore
- Flow Rate @ 400 RPM: 560 l/min
- Flow Rate @ 200 RPM: 280 l/min
- Maximum Grain Size: 16 mm
- Stator Design: Integrated clamp
- Standard Color: White
- Alternative Version: Orange – 2L8 Long Life
- Matching Rotor: 2L8 Rotor
- Putzmeister Spare Part Number: H7000508311
- Recommended: Complete 2L8 Rotor Stator Set
Machine Compatibility
This part is compatible with:
PFTZP 3 XXL
PutzmeisterSP 20 · SP 25 · Transmix
BrinkmannFHS 200/250
