Stator D4-1/4

Stator for D4-1/4 Screw Pump

Made in Germany

The D4-1/4 Stator is a premium-quality stator designed for use with the D4-1/4 progressive cavity pump (rotor stator pump). Manufactured in Germany, it delivers reliable conveying performance, precise pressure build-up, and long service life for fine mortar, grouting, injection, and other low-output pumping applications.

With a diameter of 89 mm and a length of 270 mm, the stator is designed for use with the matching D4-1/4 rotor. The 73 Shore rubber compound provides excellent sealing characteristics, high wear resistance, and dependable pumping performance when conveying materials with a maximum grain size of 2 mm.

At 400 / 200 RPM, the stator delivers an approximate flow rate of 8 / 4 l/min, making it ideal for applications requiring precise and controlled material delivery.

Available Stator Versions

The D4-1/4 stator is available in two versions:

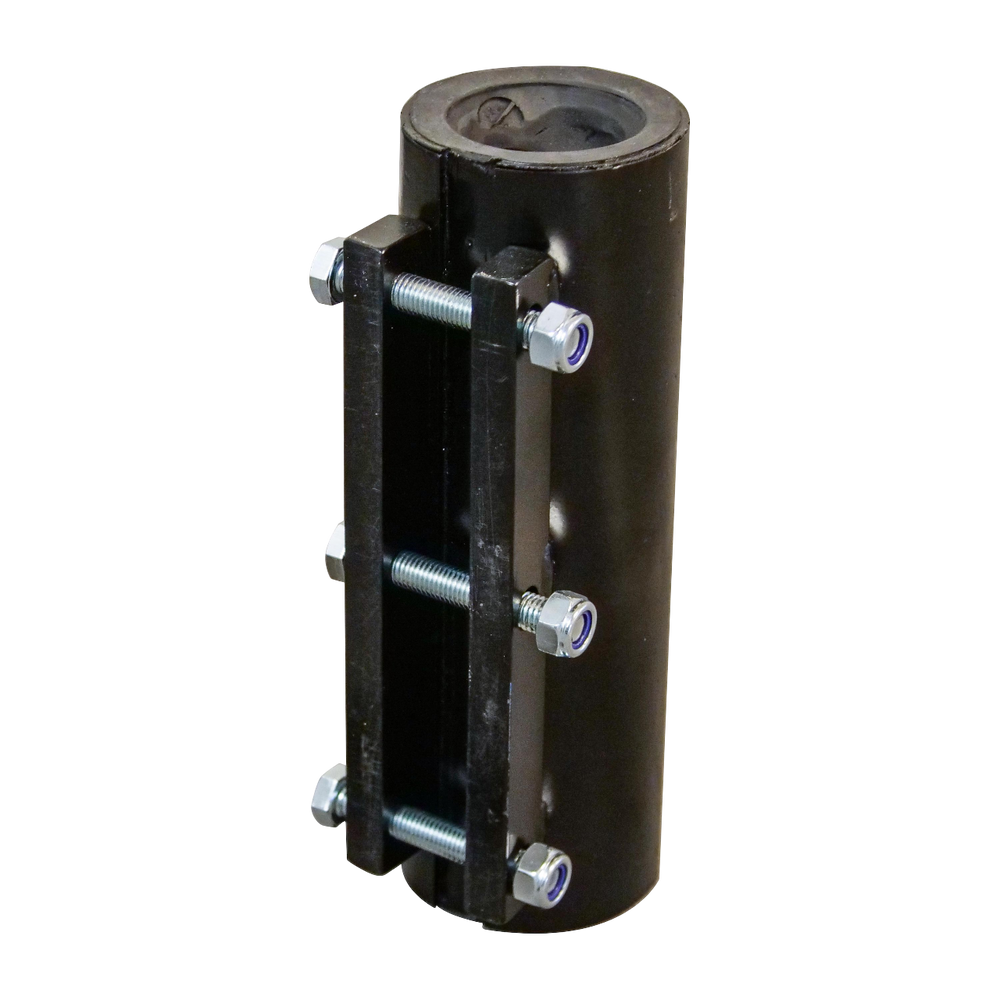

• Black with an integrated clamp

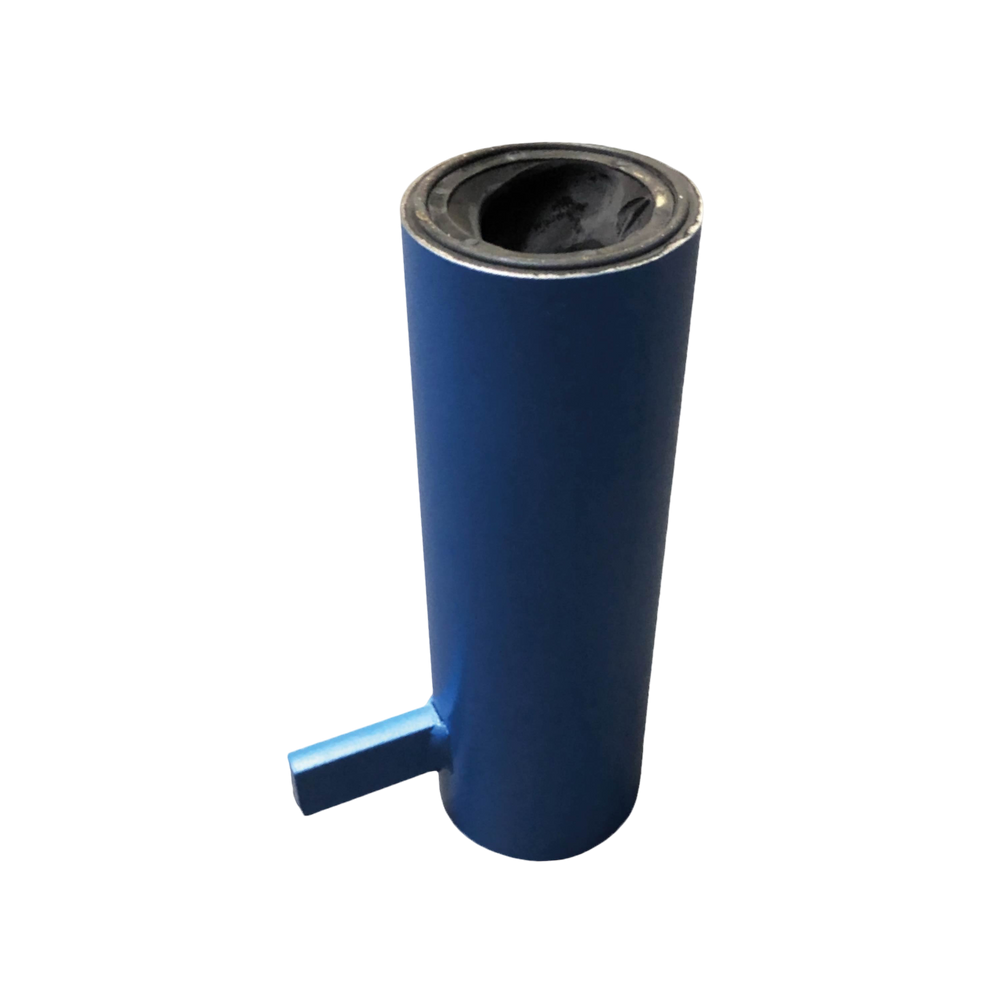

• Blue in a maintenance-free design

Both versions offer reliable performance and long service life. If you are unsure which stator is best suited to your machine or application, please contact us. Our team will be happy to help you select the correct version.

For optimum pumping performance, pressure build-up, and maximum service life, we recommend replacing the rotor and stator together as a complete D4-1/4 Rotor Stator Set.

Key Features

• Made in Germany
• Stator for D4-1/4 screw pump
• Stator diameter: 89 mm
• Stator length: 270 mm
• Rubber quality: 73 Shore
• Flow rate (@ 400 / 200 RPM): 8 / 4 l/min
• Maximum grain size: 2 mm
• Available in black with integrated clamp or blue maintenance-free
• Compatible with D4-1/4 rotor

Benefits

• Reliable conveying performance
• Precise pressure build-up
• Excellent sealing between rotor and stator
• High wear resistance
• Long service life
• Choice of two stator versions
• Precision-manufactured for dependable operation

Applications

Suitable for:

• Progressive cavity pumps
• Mortar pumps
• Grout pumps
• Injection pumps
• Fine mortar applications
• Construction machinery
• Material conveying systems

Technical Information

• Product Type: Stator
• Pump Size: D4-1/4
• Diameter: 89 mm
• Length: 270 mm
• Rubber Quality: 73 Shore
• Flow Rate (@ 400 / 200 RPM): 8 / 4 l/min
• Maximum Grain Size: 2 mm
• Available Versions: Black with integrated clamp or blue maintenance-free
• Compatible Rotor: D4-1/4 Rotor
• Country of Origin: Germany

.
