Stator D8-2
Description

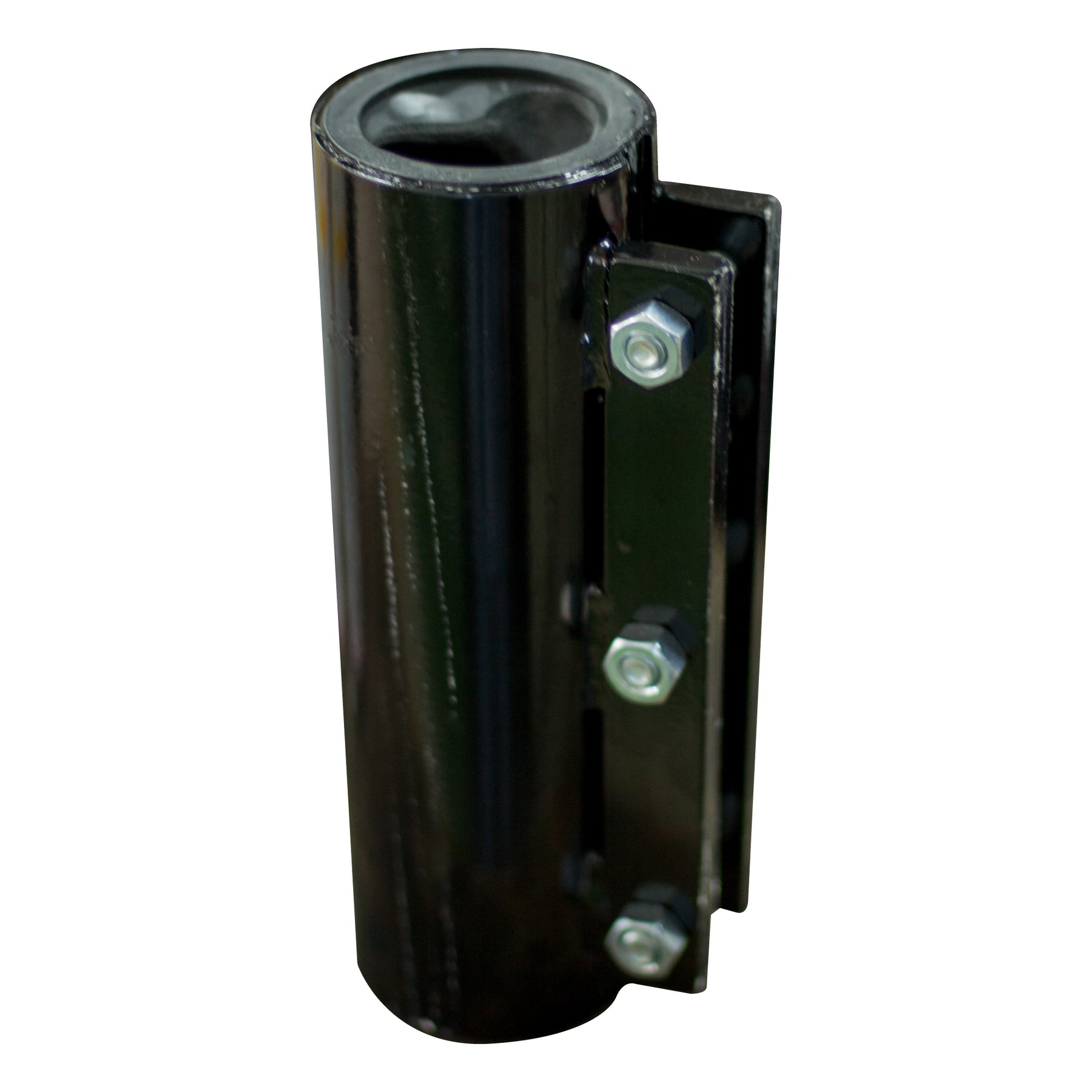

Stator D8-2 – Integrated Clamp or Maintenance-Free
D8-2 Stator for Plastering & Mortar Pumps – 34 l/min
Made in Germany
The D8-2 Stator is the matching stator for the D8-2 screw pump / progressive cavity pump. It is available in two different designs: with an integrated clamp or as a maintenance-free stator.
The D8-2 is commonly used for pumping and spraying groove-grated renders, smooth-grated renders, and special renders. With a flow rate of up to 34 l/min at 400 RPM and a maximum grain size of 3 mm, it is suitable for a wide range of professional plastering and mortar applications.
The D8-2 stator has a diameter of 89 mm, a length of 270 mm, and a rubber hardness of 73 Shore.
For optimum compatibility and pump performance, use the stator together with the matching D8-2 Rotor or purchase the complete D8-2 Rotor Stator Set.
Key Features
- Stator for the D8-2 screw pump
- Made in Germany
- Available with integrated clamp
- Also available as a maintenance-free version
- Stator diameter: 89 mm
- Stator length: 270 mm
- Rubber hardness: 73 Shore
- Flow rate up to 34 l/min
- Maximum grain size: 3 mm
- Matching D8-2 Rotor available
- Complete D8-2 Rotor Stator Set available
Benefits
Two Stator Designs Available
The D8-2 stator is available in two configurations:
Integrated Clamp:
The integrated clamp allows the stator tightness to be adjusted as required.
Maintenance-Free:
The maintenance-free version is designed for operation without manual adjustment of the stator tension.
Flow Rate up to 34 l/min
The D8-2 provides a flow rate of 34 l/min at 400 RPM and 17 l/min at 200 RPM, making it suitable for professional plastering and material pumping applications.
73 Shore Rubber
The stator is manufactured with a 73 Shore rubber compound for the specified D8-2 pump configuration.
For Materials up to 3 mm Grain Size
With a maximum grain size of 3 mm, the D8-2 is suitable for various compatible renders, plasters, and mortars.
Matched Rotor and Stator
For optimum fit and pump performance, we recommend combining the stator with the matching D8-2 Rotor or purchasing the complete D8-2 Rotor Stator Set.
Applications
The D8-2 is particularly suitable for:
- Groove-grated renders
- Smooth-grated renders
- Special renders
- Plastering applications
- Mortar pumping
- Mixing pumps
- Plastering machines
- Progressive cavity pumps
- Construction machinery
Technical Information
- Product Type: Stator
- Model: D8-2
- Made in: Germany
- Stator Diameter: 89 mm
- Stator Length: 270 mm
- Rubber Hardness: 73 Shore
- Flow Rate @ 400 RPM: 34 l/min
- Flow Rate @ 200 RPM: 17 l/min
- Maximum Grain Size: 3 mm
- Available Designs: Integrated clamp or maintenance-free
- Matching Rotor: D8-2 Rotor
- Recommended: Complete D8-2 Rotor Stator Set
Machine Compatibility
This part is compatible with:
PFTG4
m-tecDuo Mix 2000
PutzmeisterMP25
ÜlzenerPutzknecht S48 · Putzknecht S44
TurbosolGiotto
V.E.P.VR6 · VR8
MaltechM5 · M2
ImerKoine 4
UtiformQuattro
BunkerB30
Kaleta5
Baproone 400V
