Stator R7-3
Description

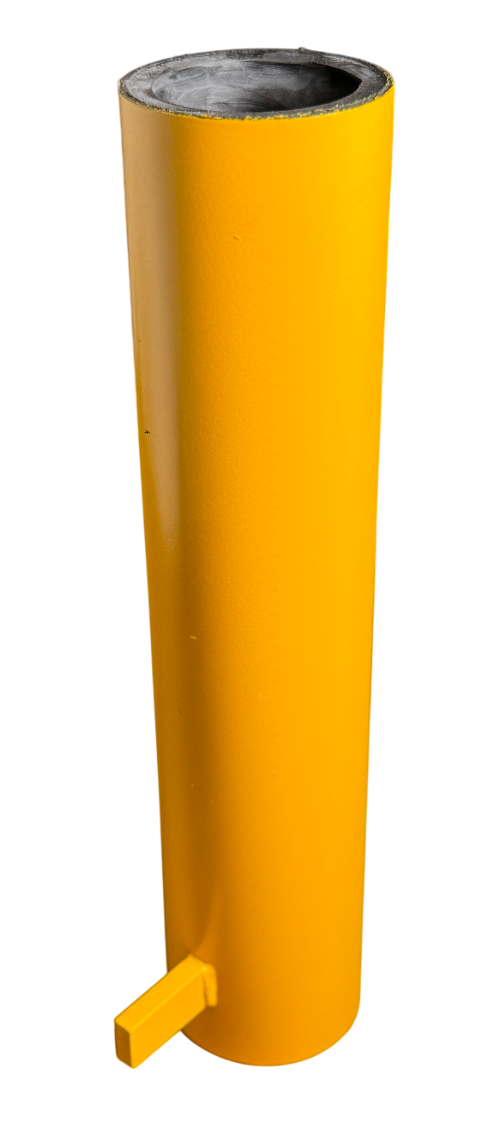

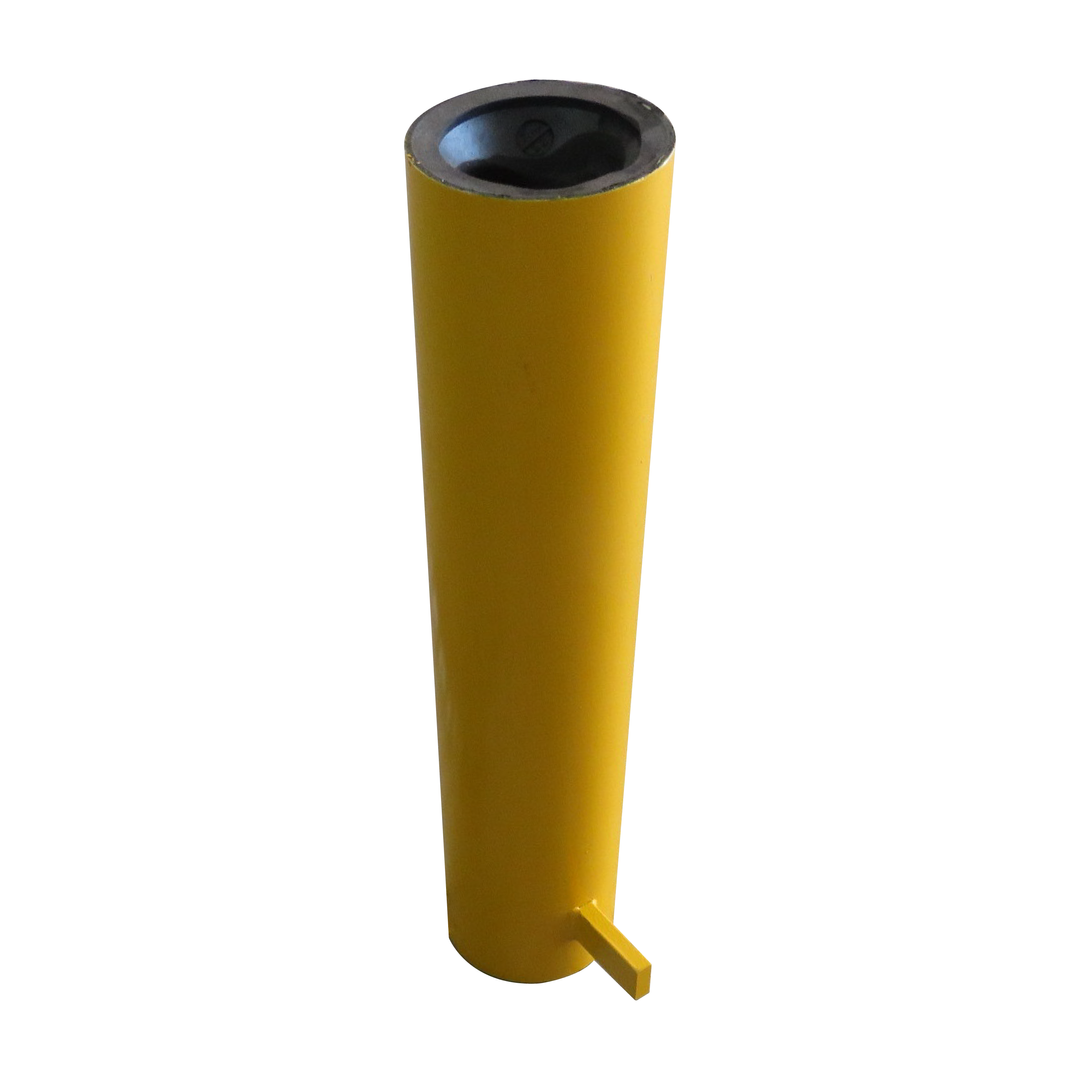

Stator R7-3
Yellow Stator for R7-3 Screw Pump
Made in Germany
The R7-3 Stator is a high-quality stator designed for the R7-3 progressive cavity pump (rotor stator pump). Manufactured in Germany, it provides reliable conveying performance, consistent pressure build-up, and long service life in demanding construction applications.
With a diameter of 114 mm and a length of 535 mm, the R7-3 stator is designed for use with the matching R7-3 rotor. The stator is made with 73 Shore rubber quality, offering excellent sealing performance, wear resistance, and reliable material transport.
The stator is suitable for materials with a maximum grain size of 6 mm and is commonly used for conveying plaster, mortar, screed, grout, and other construction materials. Its yellow colour allows quick identification on site and in the workshop.
The matching R7-3 rotor is manufactured from high alloy tool steel and features a slotted rotor head. For optimum performance and maximum service life, we recommend purchasing the complete R7-3 Rotor Stator Set.
Key Features
- Made in Germany
- Stator for R7-3 screw pump
- Stator diameter: 114 mm
- Stator length: 535 mm
- Rubber quality: 73 Shore
- Max. grain size: 6 mm
- Colour: Yellow
- Compatible with R7-3 rotor
Benefits
- Reliable conveying performance
- Consistent pressure build-up
- Excellent sealing between rotor and stator
- High wear resistance
- Suitable for abrasive construction materials
- Maximum performance when used with the matching R7-3 rotor
Applications
Suitable for:
- Mortar pumps
- Plastering machines
- Screed pumps
- Progressive cavity pumps
- Grout pumps
- Construction machinery
- Material conveying systems
Technical Information
- Product Type: Stator
- Pump Size: R7-3
- Diameter: 114 mm
- Length: 535 mm
- Rubber Quality: 73 Shore
- Maximum Grain Size: 6 mm
- Colour: Yellow
- Compatible Rotor: R7-3 Rotor
- Country of Origin: Germany
Machine Compatibility
This part is compatible with:
PFTZP 3
