Stator UE 45/7
Description
Stator UE 45/7
UE 45/7 Stator with Integrated Clamp – Available in 60 or 70 Shore
The UE 45/7 Stator is the matching stator for the UE 45/7 screw pump / rotor stator pump. With a flow rate of up to 66 l/min at 400 RPM, it is designed for demanding material pumping applications.
We supply the UE 45/7 stator in two different rubber hardnesses, allowing you to select the version that best suits your application:

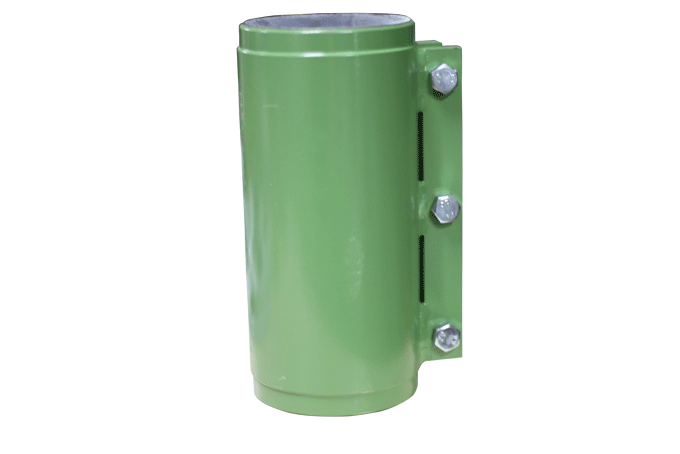

- Green UE 45/7 Stator – 60 Shore
- Yellow UE 45/7 Stator – 70 Shore
The green 60 Shore version uses a relatively soft rubber compound, while the yellow 70 Shore version provides a harder alternative.
Both versions feature an integrated clamp, allowing the stator to be tightened and adjusted as required.
Important: 127 mm Stator Diameter
The UE 45/7 has a 127 mm stator diameter, making it considerably wider than conventional D-series stators such as the D6-3. It is therefore important to ensure that your machine is equipped with the correct pressure flange for the UE 45/7.
For optimum compatibility between the pump components, we recommend purchasing the complete UE 45/7 Rotor Stator Set.
Key Features
- Stator for the UE 45/7 screw pump
- Available in two rubber hardnesses
- Green version: 60 Shore
- Yellow version: 70 Shore
- Integrated clamp for adjusting stator tightness
- Flow rate up to 66 l/min
- Maximum grain size: 8 mm
- Large 127 mm stator diameter
- Matching rotor: Rotor UE 45/7
- Complete UE 45/7 Rotor Stator Set also available
Benefits
Two Rubber Hardnesses Available
Choose between two versions depending on the required rubber hardness:
Green – 60 Shore:
The softer version of the UE 45/7 stator.
Yellow – 70 Shore:
The harder alternative for applications where a firmer rubber compound is preferred.
Adjustable Integrated Clamp
The stator features an integrated clamp, allowing its tightness to be adjusted during operation and throughout its service life.
High Pumping Capacity
With a nominal flow rate of 66 l/min at 400 RPM and 33 l/min at 200 RPM, the UE 45/7 provides substantial material delivery capacity.
For Materials up to 8 mm Grain Size
The pump configuration is suitable for materials with a maximum grain size of 8 mm.
Matched Rotor and Stator
For the best possible fit between the pump components, we recommend combining this stator with the matching UE 45/7 Rotor or purchasing the complete UE 45/7 Rotor Stator Set.
Applications
The UE 45/7 stator is suitable for compatible:
- Screw pumps
- Progressive cavity pumps
- Mortar pumps
- Plastering machines
- Mixing pumps
- Construction machinery
- Material pumping applications with grain sizes up to 8 mm
Technical Information
- Product Type: Stator
- Model: UE 45/7
- Stator Diameter: 127 mm
- Stator Length: 270 mm
- Rubber Hardness – Green: 60 Shore
- Rubber Hardness – Yellow: 70 Shore
- Flow Rate @ 400 RPM: 66 l/min
- Flow Rate @ 200 RPM: 33 l/min
- Maximum Grain Size: 8 mm
- Stator Design: Integrated clamp
- Matching Rotor: Rotor UE 45/7
- Recommended: Complete UE 45/7 Rotor Stator Set
Important Compatibility Note
With a diameter of 127 mm, the UE 45/7 stator is wider than standard D-series stators such as the D6-3. Please make sure your machine has the correct pressure flange before installing the UE 45/7.
Machine Compatibility
